Zero Emissions: Pure electric vehicles (EVs) run entirely on electricity and produce no exhaust during operation, causing no environmental pollution.
High Energy Efficiency: Studies show that the energy efficiency of electricity generated from crude oil, stored in batteries, and then used to drive electric vehicles is higher than refining crude into gasoline and driving with a gasoline engine.
Simple Structure: Using a single electric energy source eliminates the need for fuel tanks, engines, transmissions, cooling systems, and exhaust systems, greatly simplifying the vehicle structure compared to traditional internal combustion engine (ICE) vehicles.
Low Noise: EVs produce minimal vibration and noise while driving, ensuring a very quiet cabin and external environment.
Wide Range of Energy Sources: Electricity can be generated from multiple primary energy sources such as coal, nuclear, and hydropower, reducing dependence on finite oil resources.
Peak-Shaving and Valley-Filling: Electric vehicle batteries can be charged at night using low-cost off-peak electricity, helping balance grid demand and improve utilization of power generation equipment, resulting in significant economic benefits.

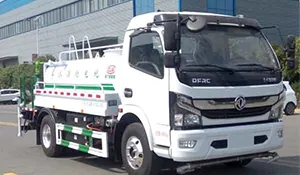

The Dongfeng 5 m³ pure electric sprinkler truck has the following specifications:
Model: CL5092GSSBEV
Chassis: EQ1090KACEV2
Wheelbase: 3800 mm
Battery Type: Lithium Iron Phosphate (LiFePO₄)
Electric Motor: Permanent Magnet Synchronous Motor
Battery Capacity: 121 kWh
Charging Time: 1 hour
Full-load Range: 280 km
Tank Volume: 4.7 m³
Tank Material: Q235 Carbon Steel
Platform and Side Protection: Q235 Carbon Steel
Pump Capacity: 40–50 m³/h
Spraying Functions: Fully automatic front flush, rear spray, and high-mounted cannon, operable from cabin with one-button control
High Cannon Range: Over 35 meters
The pure electric sprinkler truck is built on a class II electric chassis, equipped with low-pressure flushing and water spraying systems. It integrates mechanical, hydraulic (pneumatic), and electrical systems into a single specialty vehicle.
Working Principle: The vehicle uses a self-priming dual-stage centrifugal pump, providing high efficiency, wide spray coverage, and long-range water jets. The low-pressure pump is directly driven by a permanent magnet synchronous motor.
The vehicle is suitable for:
Road maintenance of urban arterial roads, highways, and plazas
Street washing
Dust suppression
Watering plants and green belts
Emergency firefighting operations
Based on Dongfeng pure electric class II chassis, with fully compliant components according to national EV regulations.
Battery layout: Side-mounted with narrow support frame, suitable for various specialty vehicle adaptations
Cabin comfort: Central locking, MP5 system, ergonomic air-cushioned seats with high-density foam, cup holders, card slots, and over ten storage compartments
Lightweight design: Maximum gross weight of 8,995 kg
Battery system: Large-capacity battery with water-cooling thermal management system for stable operation in various environments
High-power electrical interface: Supports electric operation of various specialty body functions
Pump: High-quality self-priming dual-stage centrifugal pump with large lift, driven via body-mounted motor
Front spray: Cone-shaped nozzles with automatic control, covering up to 8 traffic lanes
Rear spray: Cylinder-shaped nozzles producing uniform fan-shaped mist up to 10 m wide, suppressing dust effectively
Rear water cannon: 360° rotation, adjustable to jet or mist mode, range over 35 meters
Environmental benefits: Zero emissions, low noise, reduced fuel consumption, lower operating cost
| Parameter | Specification |
|---|---|
| Brand | Chengli |
| Announcement Batch | 334 |
| Product Name | Pure Electric Sprinkler Truck |
| Model | CL5092GSSBEV |
| Gross Vehicle Weight (kg) | 8995 |
| Tank Volume (m³) | 4.18 |
| Payload (kg) | 3990 |
| Vehicle Dimensions (mm) | 6350 × 2200 × 2510 / 2800 |
| Curb Weight (kg) | 4810 |
| Approach/Departure Angle (°) | 21/19 |
| Front/Rear Overhang (mm) | 1123/1927 |
| Axle Load (kg) | 3000/5995 |
| Maximum Speed (km/h) | 90 |
| Notes | Tank effective volume: 4.18 m³, medium: water, density 1000 kg/m³, tank dimensions (L×W×H): 3288 × 1650 × 1000 mm; side and rear lower protections: Q235 carbon steel, bolt-connected; ABS model: CM4XL-4S/4M; battery: LiFePO₄ / CATL; motor rated/peak power: 60kW/120kW |
| Parameter | Specification |
|---|---|
| Chassis Model | EQ1090KACEV2 |
| Chassis Brand | Dongfeng |
| Manufacturer | Dongfeng Motor Corporation |
| Production Location | Xiangyang, Hubei, China |
| Axles | 2 |
| Tire Count | 6 |
| Wheelbase (mm) | 3300 / 3800 |
| Tire Specs | 9.5R17.5 14PR, 8.25R16LT 14PR |
| Leaf Springs | 8 / 10+7 |
| Front/Rear Track (mm) | 1760 / 1640 |
| Fuel Type | Pure Electric |
| Motor Model | TZ370XS-LKM0853 |
| Manufacturer | Suzhou Lvcon Transmission Technology Co., Ltd. |
| Displacement (ml) | 0 |
| Power (kW) | 120 |
| Component | Specification |
|---|---|
| Tank Thickness / Coating | 4.5 mm / anti-corrosion internal coating |
| Tank Dimensions (mm) | 3288 × 1650 × 1000 |
| Tank Effective / Maximum Volume (m³) | 4.18 / 4.7 |
| Tank Material | Q235 Carbon Steel (optional stainless steel) |
| Body Motor Type | Permanent Magnet Synchronous Motor |
| Cooling | Water-cooled |
| Pipe Diameter (mm) | 50# |
| Drive Mode | Motor-driven, speed adjustable, independent of chassis operation |
| Low-Pressure Pump | Dual-stage centrifugal pump |
| Pump Brand | Longsheng |
| Pump Model | 40/50 |
| Pump Lift (m) | 50 |
| Water Valve | Pneumatic ball valve |
| Spray Width (m) | ≥14 |
| Wash Width (m) | ≥18 |
| Spray Speed (km/h) | 7–20 |
| Water Cannon Range (m) | ≥35 |
| Operation Time (h) | 1–2 |
| Optional Features | Right-side sprinkler, top/bottom spray, hose reel |
Urbanization has increased the demand for efficient, eco-friendly road cleaning and dust suppression solutions. The CL5092GSSBEV Pure Electric sprinkler truck represents the next generation of municipal sanitation and urban maintenance vehicles. Powered entirely by electricity, this vehicle ensures zero emissions, low operational noise, and high energy efficiency, making it an ideal solution for modern cities striving for sustainability.
Electric sprinkler trucks like the CL5092GSSBEV integrate mechanical, hydraulic, and electronic systems to optimize cleaning, dust suppression, and irrigation tasks. This article offers a detailed exploration of its specifications, design, performance, operational advantages, and environmental benefits.
A pure electric sprinkler truck is a specialized utility vehicle designed for:
Road surface cleaning
Dust suppression
Irrigation of green belts
Emergency firefighting support
Unlike diesel-powered vehicles, the CL5092GSSBEV runs entirely on electricity stored in high-capacity lithium iron phosphate batteries, providing zero emissions and quieter operation. The vehicle uses a permanent magnet synchronous motor to drive its water pumps and spraying systems, achieving high energy efficiency and reliability.
Electric sprinkler trucks provide unique advantages compared to traditional vehicles:
Zero Emissions: The CL5092GSSBEV produces no exhaust gases, reducing air pollution in urban areas.
High Energy Efficiency: Energy conversion through electricity is more efficient than fossil fuel-powered engines.
Simplified Structure: Eliminates components like fuel tanks, exhaust systems, and internal combustion engines, resulting in lower maintenance needs.
Quiet Operation: Low vibration and noise make it suitable for urban environments.
Diverse Energy Sources: Electricity can be generated from renewable energy such as solar, wind, hydro, or nuclear.
Load Balancing for Power Grids: Nighttime charging allows grids to utilize off-peak electricity, enhancing overall energy efficiency.
The CL5092GSSBEV is built on a Dongfeng EQ1090KACEV2 pure electric chassis with a 3800 mm wheelbase, equipped with a 121 kWh lithium iron phosphate battery. It features a 4.7 m³ water tank, high-efficiency dual-stage centrifugal pumps, and a 360° rear water cannon capable of spraying water up to 35 meters.
The truck offers automatic front spraying, rear sprinkling, and high-pressure cannon operations, all controllable from the cabin with a single interface, simplifying operations.
The following table provides detailed technical information:
| Specification | Details |
|---|---|
| Vehicle Model | CL5092GSSBEV |
| Vehicle Type | Pure Electric Sprinkler Truck |
| Total Weight | 8995 kg |
| Gross Vehicle Weight | 8995 kg |
| Tank Capacity | 4.18 m³ effective / 4.7 m³ max |
| Battery Type | Lithium Iron Phosphate (LiFePO4) |
| Battery Capacity | 121 kWh |
| Motor Type | Permanent Magnet Synchronous Motor |
| Motor Power | 60 kW nominal / 120 kW peak |
| Water Pump Type | Dual-stage centrifugal pump |
| Water Pump Capacity | 40-50 L/min |
| Water Spray Width | ≥14 m |
| Water Spray Range | ≥35 m |
| Spray Modes | Front cone, rear column, 360° rotating cannon |
| Charging Time | 1 hour (recommended 120 kW charger) |
| Maximum Speed | 90 km/h |
| Operational Range | 280 km (fully loaded) |
| Cabin Features | MP5 media, air-cushion seats, multiple storage compartments |
| Fuel Type | Pure Electric |
The EQ1090KACEV2 chassis provides:
Side-mounted battery packs for compact installation and stability
Cabin comfort with air-cushion seats, MP5, storage compartments, and central locking
Lightweight construction for maximum payload and efficiency
Water-cooling system for battery thermal management, ensuring consistent performance in different climates
High-power interfaces for supporting additional electric equipment
The chassis is designed for urban road service, meeting all national regulations for electric vehicle operations while providing reliability and performance comparable to diesel trucks.
The CL5092GSSBEV’s water system is a combination of advanced engineering and intelligent design:
Front Cone Sprayers: Covers up to 8 lanes for road surface cleaning.
Rear Cylinder Sprayers: Provides uniform fan-shaped mist for dust suppression across 10 meters width.
360° Rotating Water Cannon: Adjustable between column and mist modes, reaching up to 35 meters.
Low-Pressure Pump Driven by Electric Motor: Direct-drive permanent magnet motor reduces transmission losses.
Optional Accessories: Side sprinklers, reel systems, and misting units for versatile operations.
The combination of these features ensures efficient water usage, precise dust suppression, and operational flexibility.
The CL5092GSSBEV is suitable for:
Urban Road Cleaning: Efficiently cleans streets, highways, and squares
Dust Suppression: Reduces airborne particulate matter in dry conditions
Green Space Irrigation: Maintains urban landscaping, parks, and flower beds
Emergency Water Supply: Supports firefighting in emergencies
Event Maintenance: Ensures cleanliness during urban festivals or large gatherings
Using the CL5092GSSBEV reduces urban carbon footprints:
Zero-emission operation reduces greenhouse gases
Quiet operation minimizes noise pollution
Electric operation reduces reliance on fossil fuels
Efficient energy usage lowers overall operational costs
Supports renewable energy integration by using off-peak electricity
Key operational features include:
One-button operation for all spraying modes
Real-time water level monitoring with automatic shutdown at low water
Durable anti-corrosion tank made of Q235 steel with internal coating
Adjustable spray patterns for multiple cleaning and irrigation scenarios
Reduced maintenance due to the absence of complex mechanical components
Safety is a priority in the CL5092GSSBEV:
ABS braking system for controlled stops
High-voltage battery protection, including overcharge, over-discharge, and short-circuit safety
Cabin safety with air-cushion seats and adjustable steering
Anti-tilt design for stable operations during water spraying
Visual and auditory alerts for operational issues
Maintenance is simplified due to:
Minimal moving parts in electric systems
Long-life lithium iron phosphate battery packs
Water-cooling and heat management systems protecting motor and battery
Easy access to water pump and cabin electronics
Replaceable modular components for quick servicing
The CL5092GSSBEV offers:
Lower operating costs due to reduced fuel consumption
Reduced maintenance expenses compared to diesel vehicles
Longer service life due to high-quality materials and advanced engineering
Potential subsidies for Electric Municipal Vehicles in urban areas
Cities worldwide are adopting electric municipal vehicles for sustainability initiatives. The CL5092GSSBEV represents a cost-effective, environmentally friendly solution for urban sanitation. Its deployment improves air quality, reduces operational noise, and supports green infrastructure policies.
Longer battery ranges and faster charging systems
Integration with smart city networks for real-time monitoring
AI-assisted route optimization for efficient water usage
Expanded auxiliary features such as misting systems for air quality improvement
Increasing replacement of diesel-powered municipal vehicles with electric alternatives
The CL5092GSSBEV Pure Electric Sprinkler Truck is a comprehensive solution for urban road cleaning and dust suppression. Its advanced electric drive system, versatile water distribution features, and environmental advantages make it a superior choice for modern cities. By integrating high-performance components and intelligent controls, this vehicle ensures efficient, safe, and sustainable operations while reducing environmental impact and operational costs.
This detailed, SEO-friendly guide offers an extensive overview of the CL5092GSSBEV, covering technical specifications, operational advantages, environmental benefits, and practical applications. It is suitable for blogs, directories, and industry portals aiming to provide comprehensive information on electric municipal vehicles.
