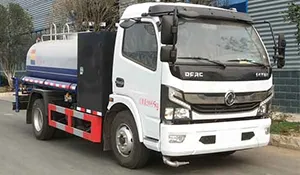

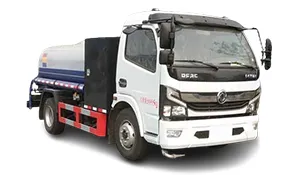

Vehicle Model: CL5091GSSBEV
Chassis Model: EQ1090KACEV
Wheelbase: 3300 mm
Battery Type: Lithium Iron Phosphate (LiFePO₄)
Motor Type: Permanent Magnet Synchronous Motor
Total Battery Capacity: 144 kWh
Charging Time: 1 hour
Full-Load Driving Range: 300 km
Tank Capacity: 5 m³
Tank Material: High-quality Q235 carbon steel
Water Pump: 40–50 m³/h
Spray Functions: Fully automatic front flush, rear sprinkling, and high-pressure water cannon (operable from the cab)
High-Pressure Water Cannon Range: Over 35 meters
| Parameter | Specification |
|---|---|
| Official Model | CL5091GSSBEV Pure Electric Water Truck |
| Dimensions (L×W×H, mm) | 6550 / 6738 × 2170 × 2470 / 2490 |
| Chassis Model | EQ1090KACEV |
| Tank Capacity | 5 m³ |
| Gross Vehicle Weight | 8,995 kg |
| Curb Weight | 4,950 kg |
| Chassis Motor Max Power | 145 kW |
| Axles | 2 |
| Wheelbase | 3,300 / 3,800 mm |
| Tires | 8.25R16LT 14PR, 9.5R17.5 14PR |
| Battery Voltage | 444 V |
| Battery Brand | CALB (China Aviation Lithium Battery) |
| Energy Consumption (Tank Operation) | 10 kWh/h |
| Recommended Charging Power | 120 kW |
| Charging Time (Recommended Power) | ~1.5 hours |
| Full-Load Range | 300 km |
| Fuel Type | Pure Electric |
The pure electric water truck is based on a Class II pure electric chassis, integrated with low-pressure washing and sprinkling systems. It combines mechanical, hydraulic (air system), and electrical systems into a single unit.
Working Principle:
Equipped with a self-priming dual-stage centrifugal pump for high efficiency, wide sprinkling coverage, and long water cannon range. Low-pressure water pumps are directly driven by a permanent magnet synchronous motor.
Road maintenance and cleaning on urban arterial roads, highways, and plazas
Dust suppression and keeping roads moist
Watering green belts and trees
Emergency firefighting applications
Uses Dongfeng pure electric Class II chassis, compliant with national regulations for new energy vehicles
Battery Layout: Side-mounted with narrow brackets to accommodate various body modifications
Cabin Comfort: Central locking, cup holders, storage slots, multiple storage compartments
Lightweight Design: Maximum GVW 8,995 kg
Battery: 144 kWh with water-cooling thermal management for consistent performance in different climates
High-Power Power Take-Off (PTO): Supports electric operation of mounted equipment
High-quality dual-stage centrifugal pump with reliable performance
Front flush with conical nozzles covering up to 8 lanes
Rear sprinkling with cylindrical nozzles producing a 10 m-wide mist to suppress dust
360° rotating rear water cannon with column or mist modes, reaching over 35 m
Zero emissions, low noise, environmentally friendly, energy-efficient, and cost-effective
| Item | Parameter | Remarks |
|---|---|---|
| Vehicle Type | 9-ton medium-duty electric truck | – |
| Chassis Dimensions (L×W×H, mm) | 6,238 / 6,738 × 2,150 × 2,360 | – |
| Wheelbase (mm) | 3,300 / 3,800 | – |
| Front/Rear Overhang (mm) | 1,123 / 1,815 | – |
| Front/Rear Track (mm) | 1,760 / 1,630 | – |
| Curb Weight (kg) | 3,900 | Class II chassis |
| Gross Vehicle Weight (kg) | 8,995 | – |
| Max Speed (km/h) | 90 | – |
| Driving Range (km) | 300 | Full load, 40 km/h constant speed |
| Charging Time (min) | 30 | 20%-90% SOC |
| 0–50 km/h Acceleration (s) | ≤12 | Full load |
| Braking Distance (m) | ≤8.5 | 30 km/h full load |
| Average Deceleration (m/s²) | ≥6 | – |
| Parking Brake Slope (%) | ≥18 | Full load |
| System | Component | Configuration |
|---|---|---|
| Vehicle | Chassis | 9-ton medium-duty truck |
| Cab | Model | Dongfeng Capita K-series 2018, single row |
| Seating | Number of Seats | 3 |
| Motor | Type | Permanent Magnet Synchronous |
| Motor Power (kW) | Rated / Peak | 80 / 145 |
| Torque (Nm) | Rated / Peak | 611 / 1,800 |
| Motor Speed (rpm) | Rated / Peak | 1,250 / 3,500 |
| Cooling | Motor & Controller | Water-cooled |
| Electric Control | Integrated Controller | MCU, DC/AC oil pump, DC/AC air pump, DC/DC, PDU, PTO interface |
| Battery | Capacity | 144.86 kWh LiFePO₄ |
| Temperature Control | Heating Belt | Standard |
| Chassis Frame | Dimensions (mm) | 192 × 65 |
| Suspension | Front / Rear Leaf Springs | 8 / 10+7 |
| Shock Absorbers | Type | Double-tube hydraulic |
| Axles | Front / Rear | 3t I-beam / 6.5t welded integral rear |
| Tires | Spec | 8.25R16LT 14PR / 9.5R17.5 14PR |
| Steering | Type | Mechanical recirculating ball with electric-hydraulic assist |
| Brakes | Service / Parking | Drum / Spring-actuated |
| Features | AC | Single-cold + PTC heater |
| Safety | ABS | CM4XL-4S/4M, Guangzhou Ruili Kemi |
| Component | Parameter | Details |
|---|---|---|
| Tank | Thickness / Coating | 4.5 mm / Internal anti-corrosion coating |
| Dimensions (mm) | 3,288 × 1,650 × 1,000 | 3300/3800 mm wheelbase variations |
| Effective / Max Volume (m³) | 4.04 / 5 | – |
| Material | Q235 Carbon Steel | – |
| PTO Motor | Type | Permanent Magnet Synchronous |
| Cooling | Motor | Water-cooled |
| Pipe Diameter (mm) | 50 | – |
| Pump | Type / Brand / Model | Dual-stage centrifugal / Longsheng / 40/50 |
| Pump Head (m) | 50 | – |
| Water Valve | Type | Pneumatic ball valve |
| Spraying Width (m) | ≥14 | – |
| Washing Width (m) | ≥18 | – |
| Spraying Speed (km/h) | 7–20 | – |
| Water Cannon Range (m) | ≥35 | – |
| Operation Time (h) | 1–2 | – |
| Parameter | Specification |
|---|---|
| Trademark | Chengli |
| Announcement Batch | 345 |
| Product Name | Pure Electric Water Truck |
| Model | CL5091GSSBEV |
| GVW (kg) | 8,995 |
| Tank Volume (m³) | 4.04 |
| Curb Weight (kg) | 4,950 |
| Dimensions (mm) | 6,550 / 6,738 × 2,170 × 2,470 / 2,490 |
| Approach / Departure Angle (°) | 21 / 12, 21 / 13 |
| Axle Load (kg) | 3,000 / 5,995 |
| Max Speed (km/h) | 90 |
| Notes | Tank effective volume: 4.04 m³; Q235 steel side and rear protective devices; ABS: CM4XL-4S/4M; Specialized equipment: tank and water system for landscaping and road cleaning; Energy storage: LiFePO₄ batteries by Jiangxi Xingying & CALB |
| Parameter | Specification |
|---|---|
| Chassis Brand | Dongfeng |
| Manufacturer | Dongfeng Motor Corporation, Xiangyang, Hubei, China |
| Axles / Tires | 2 / 6 |
| Fuel Type | Pure Electric |
| Wheelbase (mm) | 3,300 / 3,800 |
| Tire Specs | 8.25R16LT 14PR / 9.5R17.5 14PR |
| Leaf Springs | 8 / 10+7 |
| Front / Rear Track (mm) | 1,760 / 1,630 |
| Engine Model / Manufacturer | TZ290XSZ / Chengdu CRRC Motor Co., Ltd. |
| Engine Power (kW) | 145 |
| Displacement | 0 mL (Electric Motor) |
CL5091GSSBEV Pure Electric Sprinkler: Comprehensive Guide for Industry Professionals
The CL5091GSSBEV Pure Electric Sprinkler is a cutting-edge solution for modern urban management, industrial sanitation, and green area irrigation. As global industries move toward electric mobility, electric sprinklers are revolutionizing the way water spraying and dust control tasks are performed. The CL5091GSSBEV represents a benchmark in efficiency, environmental friendliness, and operational flexibility.
This guide provides an in-depth overview of the CL5091GSSBEV, including its definition, key advantages, specifications, applications, maintenance guidelines, and industry relevance, all optimized for search engines and industry professionals.
A pure electric sprinkler is an electric-powered vehicle designed to transport and distribute water for multiple industrial, urban, and agricultural applications. Unlike traditional diesel-powered sprinklers, these vehicles rely entirely on high-capacity batteries and electric motors, eliminating fuel consumption and emissions.
Electric sprinklers like the CL5091GSSBEV provide several operational benefits:
Zero emissions: Supports clean city initiatives and reduces environmental impact.
Low noise operation: Ideal for early morning or late-night operations in urban areas.
High efficiency: Electric systems offer faster response, precise control, and lower operating costs.
Adaptability: Suitable for street cleaning, park irrigation, industrial dust suppression, and construction sites.
Zero Tailpipe Emissions: Unlike diesel sprinklers, the CL5091GSSBEV produces no carbon dioxide, nitrogen oxides, or particulate matter, contributing to cleaner air in urban environments.
Noise Reduction: Operating at less than 65 dB, it allows for cleaning and irrigation in noise-sensitive zones.
Energy Efficiency: Electric energy is more efficient than combustion engines, reducing the overall environmental footprint.
Extended Range: With a 144 kWh battery, the vehicle can operate up to 300 km under full load conditions.
Fast Charging: Rapid charging systems enable the vehicle to recharge in approximately 1 hour, maximizing operational uptime.
Precise Water Distribution: Adjustable nozzles and pump pressure provide uniform spraying, minimizing water waste.
High Maneuverability: Compact design and optimized chassis allow for operations in narrow streets and crowded industrial sites.
Low Maintenance: Electric motors have fewer moving parts compared to diesel engines, reducing repair frequency and costs.
Fuel-Free Operation: Eliminates the need for diesel or gasoline, cutting operational expenses.
Durable Design: High-quality materials and corrosion-resistant chassis extend service life.
Integrated Monitoring Systems: Digital dashboards and sensors allow for real-time monitoring of battery health, water level, and system performance.
| Component | Description | Function |
|---|---|---|
| Chassis | Lightweight, corrosion-resistant frame | Supports vehicle structure and load |
| Battery | Lithium Iron Phosphate (LiFePO4), 144 kWh | Powers motor and auxiliary systems |
| Motor | Permanent Magnet Synchronous Motor | Provides efficient propulsion and pump operation |
| Water Tank | 5 cubic meters (5000 liters) | Stores water for spraying and irrigation |
| Pump System | High-pressure centrifugal pump | Delivers adjustable water pressure |
| Nozzles | Adjustable spray heads | Provides uniform water distribution |
| Control System | Digital dashboard with sensors | Monitors battery, water level, and operational status |
| Charging Interface | Fast charging port | Allows 1-hour rapid charge |
| Wheels & Suspension | Heavy-duty tires, independent suspension | Ensures stability on uneven terrain |
| Parameter | Specification |
|---|---|
| Vehicle Model | CL5091GSSBEV |
| Chassis Model | EQ1090KACEV |
| Wheelbase | 3300 mm |
| Gross Vehicle Weight | 9500 kg |
| Curb Weight | 5900 kg |
| Battery Capacity | 144 kWh |
| Motor Type | Permanent magnet synchronous motor |
| Maximum Speed | 80 km/h |
| Water Tank Capacity | 5 m³ |
| Working Range (Full Load) | 300 km |
| Charging Time | 1 hour (fast charge) |
| Spray Width | 15–22 m adjustable |
| Spray Pressure | 0.2–0.5 MPa |
| Tire Size | 7.00-16 |
| Steering | Power-assisted steering |
| Brake System | Hydraulic disc brakes |
Urban areas require continuous cleaning to maintain hygiene and reduce dust. The CL5091GSSBEV is suitable for:
Street washing and cleaning
Sidewalk and pedestrian zone irrigation
Dust control in busy intersections
Maintenance of public squares and recreational areas
Its low-noise operation and zero emissions make it ideal for city environments, especially in noise-sensitive zones or during nighttime operations.
Electric sprinklers play a crucial role in watering parks, gardens, and sports fields:
Provides consistent irrigation with adjustable spray width
Protects plant health by preventing overwatering
Conserves water through efficient nozzle distribution
Reduces manual labor with automated or semi-automated operation
Construction sites, warehouses, and industrial complexes generate significant dust, which can harm workers and the environment. The CL5091GSSBEV offers:
Large water tank capacity for extended operation
Adjustable spray pressure for localized dust control
Eco-friendly operation that complies with workplace safety and environmental regulations
Capability to operate on rough or unpaved surfaces
Electric sprinklers can assist in emergencies, such as small-scale fire control, chemical spill management, or temporary dust suppression in critical areas. The silent operation and emission-free design make it safe for confined urban areas.
Modern electric sprinklers use advanced water distribution systems for optimized coverage:
Rotary Nozzles: Evenly distribute water over wide areas, reducing dry spots.
Adjustable Spray Width: Operators can set nozzle spread from 15 to 22 meters depending on the task.
Pressure Control: Electronic pressure regulation ensures consistent output even at varying speeds.
Integrated Sensors: Water level sensors prevent pump damage and maintain safe operation.
The CL5091GSSBEV uses a LiFePO4 battery, which is renowned for:
High energy density and stable performance
Extended cycle life (2000+ cycles)
Thermal stability for safe operation in high-temperature conditions
Fast charging capability, reducing operational downtime
Efficient energy conversion with minimal losses
Smooth torque delivery for precise speed control
Low maintenance compared to combustion engines
Capable of supporting both vehicle propulsion and pump operation simultaneously
Proper maintenance is essential for ensuring longevity and reliability:
Battery Care: Avoid deep discharges; perform regular charge cycles.
Pump System: Inspect seals and filters; clean regularly to prevent clogging.
Nozzles: Remove mineral deposits to maintain even spray distribution.
Chassis and Tires: Inspect for wear, rust, and tire pressure; lubricate moving parts.
Software Updates: Keep vehicle control systems updated for optimized efficiency.
The global shift toward electric vehicles is influencing municipal and industrial fleets:
Urban centers are adopting zero-emission vehicles for sanitation.
Regulatory frameworks encourage the replacement of diesel sprinklers with electric models.
Smart city technologies integrate sprinklers with IoT devices, enabling remote monitoring and automated operation.
Electric sprinklers contribute to sustainability goals and reduce operational carbon footprint.
| Feature | CL5091GSSBEV | Diesel Sprinkler |
|---|---|---|
| Emissions | 0 | High CO2 & NOx |
| Noise Level | <65 dB | >80 dB |
| Operating Cost | Low | High (fuel + maintenance) |
| Maintenance | Minimal | Frequent |
| Energy Source | Electric | Diesel |
| Environmental Compliance | High | Medium/Low |
| Operational Range | 300 km per charge | 150–200 km per tank |
| Water Distribution Precision | High | Medium |
The CL5091GSSBEV incorporates multiple safety features:
Anti-slip braking systems for wet roads
Emergency stop buttons
Low-battery warnings to prevent sudden shutdown
Overcurrent protection in electrical circuits
Real-time monitoring of water tank levels
Ensure proper charging protocols are followed to extend battery life
Calibrate nozzles before first use for consistent spray patterns
Plan routes to maximize battery range and minimize idle time
Avoid sharp turns at high speeds to prevent water spillage and vehicle wear
Regularly inspect digital dashboards for alerts or maintenance reminders
The CL5091GSSBEV Pure Electric Sprinkler combines environmental responsibility, operational efficiency, and advanced technology to meet the demands of modern urban, industrial, and agricultural applications. Its electric powertrain, large water tank, adjustable spraying system, and smart control features make it a benchmark in sustainable water spraying vehicles.
This website uses cookies to ensure you get the best experience on our website.
WhatsApp
Phone
