Advantages of Pure Electric Special Vehicles
Zero Emissions: Pure electric vehicles use electrical energy and produce no exhaust emissions during operation, preventing environmental pollution.
High Energy Efficiency: Studies show that using crude oil to generate electricity, which is then stored in batteries and used to power an electric vehicle, has higher overall energy efficiency than refining the same oil into gasoline and powering an internal combustion engine.
Simple Structure: Using a single energy source eliminates fuel tanks, engines, transmissions, cooling systems, and exhaust systems. Compared with traditional gasoline-powered vehicles, the structure is significantly simplified.
Low Noise: Electric vehicles produce minimal vibration and noise, making both the interior and exterior very quiet.
Abundant Energy Sources: Electricity can be generated from multiple primary energy sources, such as coal, nuclear, or hydropower, reducing dependence on depleting oil resources.
Load Shifting Capability: Electric vehicle batteries can be charged at night using low-cost "off-peak" electricity, helping power plants balance peak and off-peak loads, improving economic efficiency by maximizing daily equipment utilization.

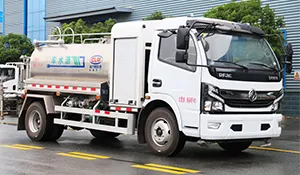

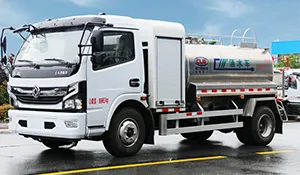

Basic Parameters of Dongfeng Pure Electric sprinkler truck

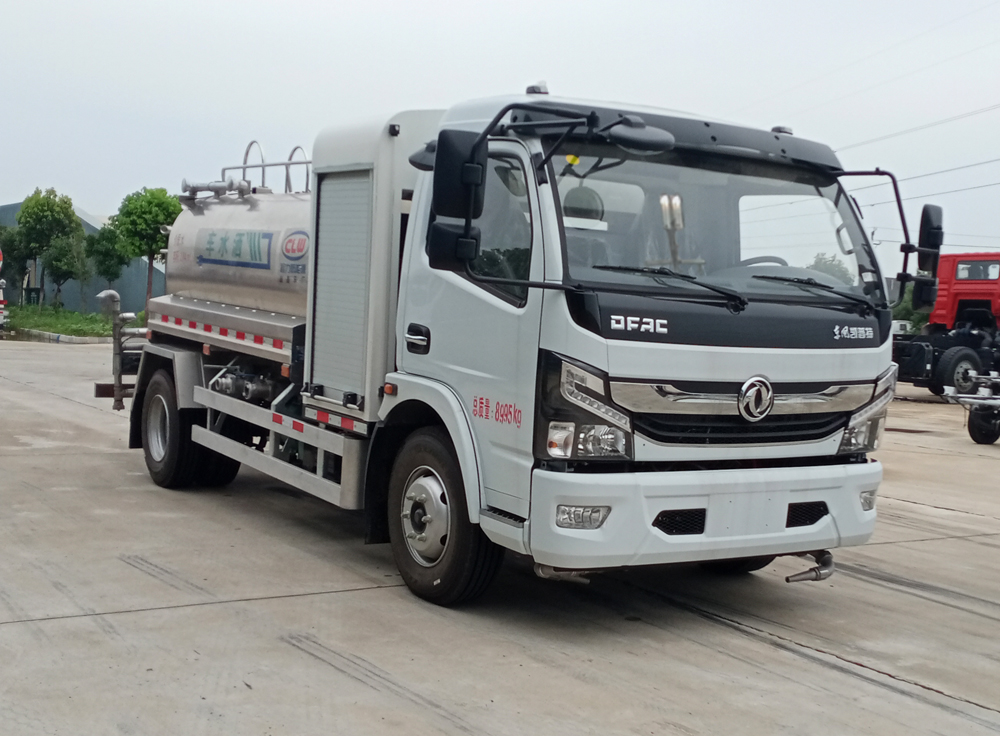

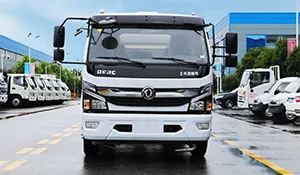

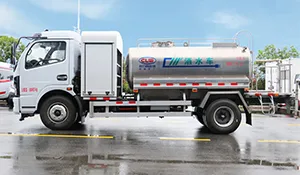

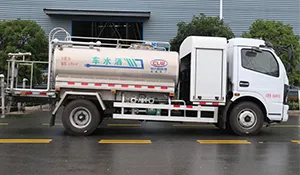

The Dongfeng 5 m³ pure electric sprinkler truck model CL5093GSSBEV is based on the EQ1090KACEV class II electric chassis, with a 3800 mm wheelbase, lithium iron phosphate battery, and permanent magnet synchronous motor. The total battery capacity is 144 kWh, with a charging time of approximately 1.5 hours and a full-load range of 300 km.

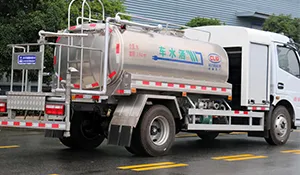

The mounted tank has a 5 m³ capacity made of high-quality alloy material, with an aluminum alloy rear platform and side guards. Equipped with 40–50 m³/h water pumps, fully automatic front flush, rear spray, and high-pressure cannon, all functions are operable with a one-button control from the driver’s cab. The high-pressure cannon has a range of over 35 meters.
| Parameter | Specification |
|---|---|
| Model | CL5093GSSBEV pure electric sprinkler truck |
| Dimensions (L×W×H) | 6810 × 2160 × 2555 mm |
| Chassis Model | EQ1090KACEV |
| Tank Capacity | 5 m³ |
| Gross Vehicle Weight | 8995 kg |
| Mounted Motor Rated Power | 18 kW |
| Curb Weight | 5050 kg |
| Energy Consumption (Upper Body) | 15 kWh/h |
| Wheelbase | 3800 mm |
| Recommended Charging Power | 120 kW |
| Tire Size | 8.25R16LT 14PR, 9.5R17.5 14PR |
| Charging Time | ~1.5 hours |
| Axle Count | 2 |
| Full-load Range | 300 km |
| Chassis Motor Max Power | 145 kW |
| Battery Type | Lithium Iron Phosphate |
| Battery Voltage | 444 V |
| Battery Brand | Zhonghang Lithium Battery |
| Battery Capacity | 144 kWh |
| Fuel Type | Pure Electric |
Product Overview
The pure electric sprinkler truck is built on a class II pure electric chassis, equipped with a low-pressure cleaning and spraying system, integrating mechanical, hydraulic (pneumatic), and electrical components.

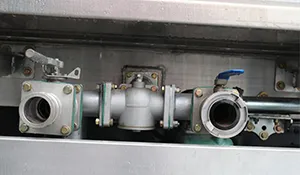

Working Principle: The truck uses a self-priming dual-stage centrifugal pump for high efficiency, wide spray coverage, and long-range water cannon operation. The low-pressure pump is directly driven by a permanent magnet synchronous motor.
Usage Scenarios
This vehicle is suitable for:
Urban main roads, highways, and public squares for road maintenance
Washing and moistening surfaces to reduce dust
Irrigating green belts and landscaping
Emergency firefighting support
Product Features
The chassis is a Dongfeng pure electric class II chassis, designed to meet national regulations for new energy vehicles, ensuring reliability. Features include:
Side-mounted battery layout with narrow support frame for easy modification of special vehicle bodies
Standard cabin with central locking, cup holders, card slots, and multiple storage compartments for driver comfort
Lightweight design with a maximum gross weight of 8995 kg
Equipped with 144 kWh large-capacity lithium battery and water-circulation thermal management system for operation in all environments
High-power upper body electricity interface to power electric equipment
Uses a well-known brand self-priming dual-stage centrifugal pump with high lift and reliable performance. The upper-body motor drives the pump directly.
Front conical nozzles automatically spray 8-lane widths; rear cylindrical nozzles spray a fan-shaped mist up to 10 meters for dust suppression.
360° rear water cannon can spray in column or mist mode with a range over 35 meters.
Zero pollution, low noise, fuel-saving, and low operating cost.
Technical Specifications
| Parameter | Specification | Notes |
|---|---|---|
| Vehicle Type | 9-ton medium electric truck chassis | / |
| Chassis Dimensions (L×W×H) | 6238/6738 × 2150 × 2360 mm | / |
| Wheelbase | 3300/3800 mm | / |
| Front/Rear Overhang | 1123 / 1815 mm | / |
| Front/Rear Track Width | 1760 / 1630 mm | / |
| Curb Weight | 3900 kg | Class II Chassis |
| Gross Vehicle Weight | 8995 kg | / |
| Max Speed | 90 km/h | / |
| Full-load Range | 300 km (at 40 km/h constant speed) | / |
| Charging Time | 30 min (20%-90% SOC) | / |
| 0–50 km/h Acceleration | ≤12 s | Full-load |
| Braking Distance | ≤8.5 m | Initial speed 30 km/h |
| Average Deceleration | ≥6 m/s² | / |
| Parking Brake Slope | ≥18% | Full-load |
| System | Component | Specification |
|---|---|---|
| Vehicle Type | 9-ton medium truck | / |
| Cabin | Dongfeng Captain K Series 2018, single-row | Seats: 3 |
| Motor Type | Permanent magnet synchronous | Rated/Peak Power: 80/145 kW |
| Motor Torque | 611/1800 Nm | Rated/Peak |
| Motor Speed | 1250/3500 rpm | Rated/Peak |
| Motor Cooling | Water-cooled | / |
| Electric Control | Integrated controller | MCU, oil pump DC/AC, air pump DC/AC, DC/DC, PDU, upper-body power interface |
| Battery Capacity | 144.86 kWh | Lithium Iron Phosphate |
| Temperature Control | Heating tape | / |
| Suspension | Front 8 leaf, rear 10+7 leaf springs | Dual-tube shock absorbers |
| Front Axle | 3 t I-beam | / |
| Rear Axle | 6.5 t welded assembly | / |
| Final Reduction | 5.29 | / |
| Tires | 8.25R16LT 14PR, 9.5R17.5 14PR | / |
| Steering | Mechanical recirculating ball | Electric hydraulic assist |
| Brakes | Air brake, drum | Parking spring energy type |
| Air Conditioning | Single cold + PTC heater | / |
| Safety | ABS | CM4XL-4S/4M |
| Other | T-box, LCD CAN instrument, reversing radar, cruise control | / |
Chassis Features:
Battery layout can be side-mounted or rear-mounted to support specialized upper-body modifications
Cabin includes power windows, central locking, ergonomic seats, and multiple storage spaces for driver comfort
Lightweight design with maximum gross vehicle weight of 8995 kg
Equipped with 144.86 kWh large-capacity battery for long-duration operations
| Parameter | Specification |
|---|---|
| Tank Thickness | 4 mm |
| Tank Dimensions (L×W×H) | 1643 × 1100 × 3100 mm |
| Effective / Maximum Tank Volume | 3.93 / 5 m³ |
| Tank Material | Alloy |
| Upper-body Motor | Permanent magnet synchronous, water-cooled |
| Pipeline Diameter | 50 mm |
| Drive | Independent motor drive, real-time adjustable speed |
| Pump Type | Dual-stage centrifugal, Longsheng brand |
| Pump Model | 40/50 |
| Pump Head | 50 m |
| Water Valve | Pneumatic ball valve |
| Spray Width | ≥14 m |
| Wash Width | ≥18 m |
| Spray Speed | 7–20 km/h |
| Water Cannon Range | ≥35 m |
| Working Duration | 1–2 h |
| Optional Side Sprayer | Yes |
| Optional Up/Down Spray | Yes |
| Optional Hose Reel | Yes |
| Parameter | Specification |
|---|---|
| Brand | Chengli |
| Announcement Batch | 344 |
| Product Name | Pure Electric Sprinkler Truck |
| Model | CL5093GSSBEV |
| Gross Vehicle Weight | 8995 kg |
| Tank Volume | 3.93 m³ |
| Rated Load | 3750 kg |
| Dimensions (L×W×H) | 6810 × 2160 × 2555 mm |
| Curb Weight | 5050 kg |
| Approach / Departure Angle | 21° / 12° |
| Front/Rear Overhang | 1123 / 1887 mm |
| Axle Load | 3000 / 5995 kg |
| Max Speed | 90 km/h |
| ABS | CM4XL-4S/4M |
| Battery | Lithium Iron Phosphate, Zhonghang Lithium Battery |
| Side & Rear Guards | Aluminum alloy, bolt-connected |
| Rear Guard Size | 120 × 50 mm, ground clearance 470 mm |
| Tank Medium | Water, density 1000 kg/m³ |
| Tank Capacity | Effective: 3.93 m³ |
| Tank Dimensions | 1643 × 1100 × 3100 mm |
| Chassis Wheelbase | 3800 mm |
| Special Functions | Water tank, pipeline system, spraying device, work platform |
| Motor Power | 80/145 kW rated/peak |
| Parameter | Specification |
|---|---|
| Chassis Model | EQ1090KACEV |
| Chassis Brand | Dongfeng |
| Manufacturer | Dongfeng Motor Co., Ltd. |
| Production Location | Xiangyang, Hubei |
| Axle Count | 2 |
| Tires | 8.25R16LT 14PR, 9.5R17.5 14PR |
| Leaf Springs | 8/10+7 |
| Front Track | 1760 mm |
| Rear Track | 1630 mm |
| Fuel Type | Pure Electric |
| Motor Model | TZ290XSZ |
| Motor Manufacturer | Chengdu CRRC Motor Co., Ltd. |
| Displacement | 0 ml |
| Motor Power | 145 kW |
CL5093GSSBEV Pure Electric sprinkler truck — Ultimate Industry Reference
Electric vehicles are reshaping municipal operations and environmental protection efforts globally. Among these, pure electric sprinkler trucks represent a key segment in sustainable sanitation, road dust control, and landscape irrigation. This guide examines the CL5093GSSBEV pure electric sprinkler truck in depth — from basic definitions and component design to performance features, operational advantages, and comparative analysis.
This article is structured for maximum SEO effectiveness, using natural keyword density while presenting comprehensive insights valued by Google and industry readers alike.
A pure electric sprinkler truck is a battery-powered municipal specialty vehicle designed to transport water and distribute it across urban or industrial surfaces using advanced spraying systems. Unlike traditional diesel-powered water trucks, pure electric versions rely solely on stored electrical energy. They emit no exhaust gases, operate quietly, and generally have lower maintenance and operating costs.
Common applications include:
Road surface cleaning
Dust suppression on paved and construction roads
Irrigation of green belts and public lawns
Emergency water supply for firefighting preparedness
Electric sprinkler trucks combine high-capacity water tanks, efficient pumping systems, and intelligent electric powertrains, making them versatile tools for modern cities focused on sustainability.
Pure electric sprinkler trucks like the CL5093GSSBEV deliver a range of compelling advantages:
Electric vehicles produce no tailpipe emissions, helping reduce urban air pollution and align with clean air policies.
Electric drivetrains convert a higher proportion of grid energy into movement than internal combustion engines do with fuel.
Eliminating components such as fuel tanks, exhaust systems, and complex transmissions results in a simpler mechanical architecture with reduced maintenance.
Electric trucks operate quietly compared to diesel models, making them suitable for residential or late-night sanitation operations.
Electricity can be sourced from diverse energy types including hydro, solar, and wind — reducing dependency on fossil fuels.
Charging during off-peak hours helps electricity providers balance grid loads, improving overall generation efficiency.
Electric power is typically cheaper than diesel fuel, and electric motors require less routine maintenance.
The CL5093GSSBEV model is a pure electric sprinkler truck optimized for urban and industrial spraying operations. Its design emphasizes reliability, performance, and adaptability. The truck is commonly based on a class II electric chassis with a permanent magnet synchronous motor, a high-capacity lithium iron phosphate battery, and a hydraulically integrated water tank and pump system.
Electric sprinkler trucks of this category are ideal when modern sanitation fleets require:
Zero-emission operation
Extended range with high-capacity batteries
Low noise in operation
Automated or semi-automated water spraying systems
Reliable dust control and irrigation
The CL5093GSSBEV incorporates several advanced systems designed for effective municipal tasks.
The electric motor provides:
High torque for city driving and full-load conditions
Real-time speed responsiveness
Regenerative braking to recapture energy
Reliable performance with minimal vibration
The electric propulsion system eliminates traditional internal combustion components, which significantly reduces mechanical complexity and maintenance frequency.
A hallmark of this model is its high-performance water distribution system:
Dual-stage centrifugal pump with self-priming capability
Large water distribution widths through front and rear nozzles
360° rotating rear water cannon with adjustable spray modes
Intelligent flow control managed from the driver’s cabin
The system supports multiple operational requirements such as broad dust suppression coverage or fine irrigation distribution.
Modern electric sprinkler trucks integrate digital control systems:
CAN-bus network for reliable communication
Central touchscreen display for real-time data
Water level sensors and fault alerts
Remote fleet monitoring compatibility
These functions ensure precise control and improved operator efficiency.
Below are technical tables optimized for search indexing and clear comparison:
| Parameter | Specification |
|---|---|
| Model | CL5093GSSBEV Pure Electric Sprinkler Truck |
| Dimensions (L×W×H) | 6810 × 2160 × 2555 mm |
| Chassis Model | EQ1090KACEV (Electric) |
| Gross Vehicle Weight | 8995 kg |
| Curb Weight | 5050 kg |
| Payload | 3750 kg |
| Maximum Speed | 90 km/h |
| Full-Load Operating Range | 300 km |
| Charging Time | ~1.5 hours |
| Batteries | Lithium Iron Phosphate |
| Battery Capacity | 144 kWh |
| Battery Voltage | 444 V |
| Tire Specifications | 8.25R16LT 14PR, 9.5R17.5 14PR |
| Fuel Type | Pure Electric |
| Parameter | Specification |
|---|---|
| Battery Layout | Side-mounted (optional rear-mounted) |
| Motor Type | Permanent Magnet Synchronous |
| Rated Motor Power | 80 kW |
| Peak Motor Power | 145 kW |
| Rated Torque | 611 Nm |
| Peak Torque | 1800 Nm |
| Cooling System | Water-cooled |
| Chassis Suspension | 8 / 10+7 leaf springs |
| Steering | Mechanical recirculating ball with electric hydraulic assist |
| Brake System | Pneumatic service brake |
| Parking Brake | Spring energy type |
| Safety | ABS |
| Parameter | Specification |
|---|---|
| Tank Material | Alloy |
| Effective Tank Volume | 3.93 m³ |
| Maximum Tank Volume | 5 m³ |
| Pump Type | Dual-stage centrifugal |
| Pump Flow Rate | ~40 m³/h |
| Pump Head | ~50 m |
| Water Valve | Pneumatic ball valve |
| Spray Width | ≥14 m |
| Wash Width | ≥18 m |
| Rear Cannon Spray | ≥35 m |
| Operation Duration | 1–2 hours |
| Feature | Measured Value |
|---|---|
| 0–50 km/h Acceleration | ≤ 12 seconds (full-load) |
| Braking Distance (30 km/h) | ≤ 8.5 m |
| Average Deceleration | ≥ 6 m/s² |
| Parking Brake Gradeability | ≥ 18% |
| Environmental Noise | Low (Electric Operation) |
The tank is crafted from high-grade alloy sheet with corrosion-resistant epoxy internal coating. Internal anti-slosh baffles stabilize water during sudden stops or acceleration. A top manhole allows easy cleaning, inspection, and water filling.
Anti-vortex devices prevent air ingestion near the pump inlet, ensuring consistent pump flow and prolonging pump life.
The dual-stage self-priming pump ensures wide water dispersion with high lift capacity. Front cone nozzles automatically cover multiple road lanes, while rear nozzles distribute a fine mist that effectively suppresses airborne dust particles.
The 360° rotating rear water cannon supports jet and fog spray modes depending on the task — from targeted irrigation to broad-area dust mitigation.
An IP65-rated touchscreen interface offers real-time monitoring of:
Water levels
Pump performance
Vehicle state
Fault codes
The system supports remote connectivity for fleet management and predictive maintenance, which can significantly improve operational uptime and servicing cycles.
Integrated voice broadcast systems provide audible alerts, safety notifications, and optional audio cues during operations.
Pure electric sprinkler trucks like the CL5093GSSBEV are invaluable for:
Urban Road Maintenance: Spray and wash surfaces to maintain clean, dust-free roads.
Public Event Cleanup: Prepare and clean up areas before and after gatherings.
Landscape Irrigation: Water green belts, parks, and road-side trees.
Construction Dust Control: Suppress dust on building sites and access roads.
Emergency Preparedness: Serve as auxiliary water sources for firefighting or spill response.
Routine maintenance ensures optimal performance and long service life:
Battery Health Monitoring: Periodic checks for cell health and thermal performance.
Pump and Valve Inspection: Regular inspection for wear, debris, or leakage.
Control System Calibration: Update software and recalibrate sensors periodically.
Structural Integrity Checks: Evaluate body mounts, welds, and fasteners for signs of fatigue.
Electric systems require less mechanical maintenance than combustion engines, reducing total cost of ownership.
Electric sprinkler trucks contribute to:
Reduced greenhouse gas emissions
Lower noise pollution
Improved roadside air quality
Reduced dependence on fossil fuels
Lower operational expenses over time
They also support renewable energy utilization when charged from solar, wind, or hydropower sources.
| Feature | Diesel Sprinkler Truck | CL5093GSSBEV Electric Sprinkler Truck |
|---|---|---|
| Emissions | High | Zero (No Tailpipe Emissions) |
| Energy Source | Fossil Fuel | Electricity (Renewables Compatible) |
| Noise | Loud | Quiet Operation |
| Maintenance | Frequent (Engine, Exhaust) | Reduced (Electric Motor) |
| Range | Variable | ~300 km |
| Charging/Refueling | Fuel Station | Fast Charging (~1.5h) |
| Operational Cost | Higher | Lower (Electricity + Maintenance) |
With increasing urban air quality regulations and electrification policies across major regions, electric municipal vehicles are expected to become standard in sanitation fleets. Advancements in battery technology, energy management systems, and autonomous controls will continue to improve the value proposition of models like the CL5093GSSBEV.

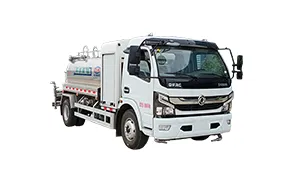

The CL5093GSSBEV pure electric sprinkler truck is a high-performance, environmentally friendly municipal vehicle designed for modern road cleaning, dust suppression, and irrigation tasks. With zero emissions, intelligent control systems, and efficient battery-electric propulsion, it offers reliable and cost-effective operation for various sanitation needs. Its combination of advanced water distribution technology, robust structural design, and real-world operational features position it as a key player in sustainable urban infrastructure.
This website uses cookies to ensure you get the best experience on our website.
WhatsApp
Phone
