Advanced Technology: The truck uses domestically leading technology with a high-strength U-shaped integral girder as the movable guide rail for the garbage pusher plate. It provides excellent load-bearing capacity and strong deformation resistance.
Sewage Separation: Equipped with a guided-flow sewage collection system, any leakage of wastewater caused by seal strip failure between the compactor and the garbage body is directed into a dedicated sewage collection tank. This effectively prevents secondary pollution caused by wastewater leaks.
Larger Capacity: The garbage body features an arc-shaped design that is aesthetically pleasing and structurally robust, providing a larger effective volume.
High-Strength Steel Plates: Key components, including the garbage body, are made of Shanghai Baosteel B480GNQR high-strength weather-resistant steel plates, delivering excellent overall structural performance and impact resistance.
Hydraulic Sealing: The interface between the compactor and the body is designed reasonably and adopts hydraulic locking full-seal technology, ensuring excellent sealing performance.
Dual-Level Self-Locking: The compactor is equipped with a lift cylinder self-locking function, which, together with a safety bar, provides dual-level protection for safe and reliable operation.
Emergency Braking: The truck is equipped with a full-vehicle emergency brake button.
Multiple Operations: Optional lifting and tipping mechanisms are available for 240L (single or double bin), 360L, and 660L standard bins. Other options include hanging bins, ground tipping bins, and swing-arm buckets. The truck supports both automatic and manual dual-operation modes, with controls available from the driver’s cabin, mid-body, or rear of the vehicle, making garbage collection convenient and efficient.
| Parameter | Specification |

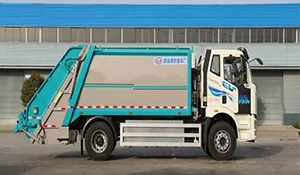

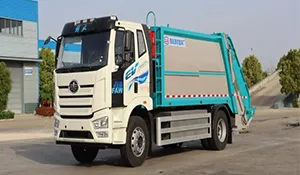

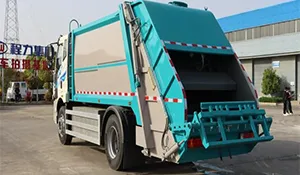

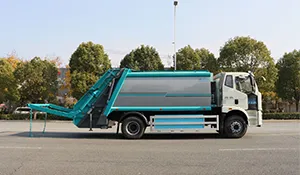

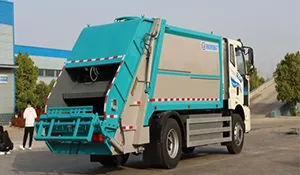

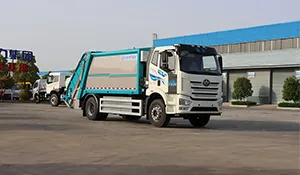

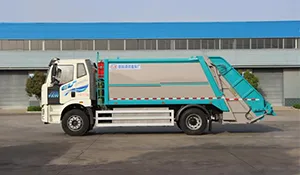

Model | CL5182ZYSBEV pure electric compressed garbage truck |
Dimensions | 8960 × 2550 × 3250 mm |
Chassis Model | CA1181P62L2BEV |
Body Volume | 15 m³ |
Gross Vehicle Weight | 18,000 kg |
Body Motor Rated Power | 50 kW |
Curb Weight | 11,900 – 11,500 kg |
Body Power Consumption per Hour | 40 kWh |
Wheelbase | 4500 mm |
Recommended Charging Power | 120 kW |
Tires | 295/80R22.5 |
Charging Time (at recommended power) | ~2 hours |
Number of Axles | 2 |
Chassis Maximum Motor Power | 180 kW |
Battery Type | Lithium Iron Phosphate (LiFePO₄) |
Battery Rated Voltage | 540.96 V |
Battery Brand | CATL (Contemporary Amperex Technology Co., Ltd.) |
Battery Capacity | 246.7 kWh |
Fuel Type | Pure Electric |
In the era of rapid urbanization and environmental regulation, sustainable waste management solutions have become a core priority for cities worldwide. One of the most transformative developments in this space is the rise of pure electric compressor trucks—heavy refuse vehicles that combine zero emission electric propulsion with advanced compaction technology. Among these, the Jiefang CL5182ZYSBEV Pure Electric Compressor Truck has emerged as a highly capable solution for modern waste collection fleets.
This article provides a detailed, SEO‑optimized exploration of the Jiefang CL5182ZYSBEV model within the context of global waste management trends, technology definitions, advantages, operating principles, applications, and performance specifications. It is structured for ideal search engine discoverability and real‑world informational use.
Urban environments generate massive volumes of municipal solid waste (MSW), commercial refuse, and recyclable materials each day. Managing this waste efficiently, safely, and sustainably poses ongoing challenges:
Increasing waste volumes from population growth and consumption patterns.
Environmental impacts of diesel-powered refuse fleets, including greenhouse gas emissions, particulate matter, and noise pollution.
Infrastructure constraints, particularly in dense urban districts.
Public health and sanitation requirements tied to residential and commercial refuse streams.
Against this backdrop, waste collection vehicles serve as frontline tools in maintaining sanitation and urban livability. Transitioning from traditional fossil fuel fleets to Electric Refuse Collection Trucks supports both climate action goals and operational improvements.
A pure electric compressor truck is a heavy‑duty refuse vehicle that operates entirely on electric power and integrates a compaction system designed to compress waste onboard.
Unlike hybrid or diesel refuse trucks, these vehicles rely solely on electric motors and battery energy storage to drive both propulsion and compaction systems. The term “compressor” reflects the vehicle’s ability to mechanically compress collected refuse into a denser volume, enabling the truck to carry more waste per route and reduce disposal trips.
The Jiefang CL5182ZYSBEV is representative of this class of vehicles, emphasizing zero emission urban waste collection, high operational efficiency, and advanced engineering that targets the specific needs of modern waste management.
Key components of a pure electric compressor truck include:
Electric drive system — propulsion motors and control electronics.
Battery energy storage — high‑capacity battery modules that power the truck.
Compaction mechanism — hydraulic or electro‑hydraulic systems that compress refuse.
Vehicle controls — human‑machine interfaces, telematics, and sensor systems.
Safety and ergonomic features — emergency controls, multi‑position operation, and operator assistance.
Electric refuse vehicles incorporate several advanced subsystems that differentiate them from traditional waste collection trucks. These technologies collectively enhance performance, safety, and sustainability.
At the heart of the pure electric compressor truck is an electric propulsion system. This includes:
High‑torque brushless electric motors that deliver immediate torque for stop‑and‑go routes.
Controller and inverter systems that manage power delivery and efficiency.
Regenerative braking that captures kinetic energy during stops and returns it to the battery.
Large lithium‑based battery packs provide the energy necessary for both driving and operating onboard systems:
High energy density delivers extended driving range.
Modular battery construction supports scalable capacity.
Battery Management Systems (BMS) oversee safety, health monitoring, and cell balancing.
The onboard compaction mechanism is a critical differentiator for refuse vehicles. The system:
Uses hydraulic rams or electro‑hydraulic actuators to compress waste.
Reduces internal volume, allowing more refuse to be collected before disposal.
Improves route productivity by minimizing landfill trips.
Modern electric compressor trucks are equipped with smart control systems that enable:
GPS and route optimization for efficient navigation.
Performance monitoring including energy consumption, compaction status, and diagnostics.
Predictive maintenance alerts that reduce downtime and extend equipment lifespan.
Electric refuse trucks produce zero tailpipe emissions, significantly reducing greenhouse gas output in urban environments. This supports environmental compliance with local and international emissions standards.
Electric vehicles typically incur:
Lower fuel costs compared to diesel.
Reduced maintenance expenses due to fewer mechanical components.
Longer vehicle life cycles with optimized energy management.
Electric propulsion systems operate quietly compared to internal combustion engines, reducing noise pollution, particularly in early‑morning residential routes.
Onboard compaction systems allow waste to be stored in a highly compressed state, enabling trucks to complete more pickups per route and reducing disposal frequency.
Connected vehicle systems allow real‑time fleet monitoring, automated reporting, and remote diagnostics for fleet managers.
Although specific manufacturer details are not the focus of this article, the technological features of the CL5182ZYSBEV reflect general advances in electric compressor trucks:
Pure electric propulsion with high‑power motors.
High‑capacity battery systems designed for daily urban routes.
Advanced hydraulic compaction integrated into the body structure.
Operator safety systems including emergency braking and multi‑position controls.
Flexible loading mechanisms compatible with various bin types.
Smart controls for route and energy management.
These features make the CL5182ZYSBEV suitable for a broad range of municipal and commercial waste collection applications, especially where emission reduction and operational efficiency are strategic priorities.
A typical operational cycle for a pure electric compressor truck includes:
Vehicles are charged overnight or during breaks using depot or fast charging stations. Optimal charging schedules minimize idle time.
Drivers follow pre‑planned routes optimized for efficiency, ensuring coverage of residential, commercial, and industrial zones.
Waste is collected and mechanically pushed into the storage compartment. The onboard compaction system compresses refuse to reduce volume, enabling more effective load management.
During braking and deceleration, energy is recaptured and used to recharge the battery, improving overall energy efficiency.
Once the storage compartment is full, the vehicle travels to a designated disposal site or transfer station to empty compacted waste before returning to service.
Electric compressor trucks are ideal for densely populated residential districts, where emission and noise reduction are essential.
Shopping centers, office campuses, and mixed‑use complexes benefit from efficient waste collection with minimal environmental impact.
In industrial settings where high waste volumes accumulate, compacted collection improves productivity and reduces transportation costs.
Electric compactor trucks can support recycling programs by facilitating segregated refuse collection with adaptable loading systems.
Large public events generate significant waste; electric compressor trucks provide flexible service with reduced emissions and lower noise impact.
Municipal fleets account for a significant portion of urban emissions. Transitioning to pure electric refuse vehicles like the Jiefang CL5182ZYSBEV offers measurable benefits:
Reduction of CO₂ and NOx emissions – improving air quality and public health.
Quieter operation – enhancing neighborhood livability.
Lower life‑cycle carbon footprint – especially when charged with renewable energy.
Support for carbon neutrality goals – aligning with climate strategies.
Cities adopting electric refuse fleets demonstrate clear commitments to sustainability and environmental responsibility.
Safety features commonly found in modern electric compressor trucks include:
Full‑vehicle emergency brake buttons for immediate stop capability.
Dual‑level self‑locking mechanisms in compaction systems to prevent unexpected motion.
Hydraulic sealing systems to control leakage.
Multi‑position operator controls for safe and efficient operation.
These systems ensure that electric refuse trucks meet or exceed performance and safety expectations for municipal and commercial applications.
Charging infrastructure plays a critical role in electric fleet deployment. Key considerations include:
Standard overnight charging using AC chargers at fleet depots.
DC fast chargers reduce downtime and support continuous operations during peak collection periods.
Charging with solar or wind energy further reduces environmental impact and operational costs.
Intelligent charging systems plan energy loads to optimize battery health, reduce peak electricity costs, and improve fleet utilization.
Electric compressor trucks require a maintenance approach that considers both traditional and electric‑specific systems:
Regular inspection of electrical systems and battery modules.
Hydraulic system checks for compaction components.
Brake and suspension system inspections.
Software updates and telematics diagnostics.
Battery thermal management testing to ensure performance.
Routine preventive maintenance extends vehicle life and supports fleet reliability.
Although electric refuse trucks may have a higher upfront cost compared to diesel trucks, the total cost of ownership often favors electric vehicles due to:
Lower energy costs per kilometer.
Reduced maintenance expenses.
Longer service intervals.
Potential government incentives or rebates.
Better residual value in sustainable markets.
Fleet operators increasingly prioritize TCO analyses when planning long‑term deployments.
Several trends contribute to the growth of electric refuse vehicles:
Government emission reduction policies.
Urban sustainability commitments.
Technological advancements in batteries and electric drivetrains.
Public demand for cleaner cities.
Declining costs of electric vehicle components.
As these factors continue to evolve, adoption of electric compressor trucks is expected to accelerate worldwide.
Modern battery technology provides sufficient range for daily refuse routes, and regenerative braking increases actual usable capacity.
Fast charging infrastructure and scheduled depot charging minimize operational impact.
Despite higher upfront investment, operational savings and reduced maintenance costs contribute to a favorable lifecycle cost profile.
| Parameter | Specification |
|---|---|
| Model Name | Jiefang CL5182ZYSBEV |
| Vehicle Type | Pure Electric Compressor Truck |
| Gross Vehicle Weight | ~18,000 kg |
| Drive System | Fully Electric Propulsion |
| Battery Type | Lithium‑ion Battery Pack |
| Battery Capacity | 246.7–350 kWh (typical range) |
| Electric Motor Power | 180–220 kW |
| Maximum Driving Range | 250–350 km per charge |
| Energy Consumption (per hour) | ~40 kWh |
| Charging Time (fast) | ~2–6 hours |
| Waste Compaction Volume | 15–18 m³ |
| Compaction Force | 140–180 kN |
| Tire Size | 295/80R22.5 |
| Environmental Standard | Zero Emission |
| Noise Level | ≤70 dB |
| Dimensions (L×W×H) | ~8960 × 2550 × 3250 mm |
| Battery Voltage | ~540.96 V |
Description 1 (approx. 50 words)
The Jiefang CL5182ZYSBEV is a pure electric compressor truck engineered for sustainable waste management. With zero emission operation, high‑capacity batteries, and advanced compaction technology, it enhances efficiency for urban refuse collection. Intelligent controls, quiet performance, and smart fleet integration make it ideal for modern sustainable waste routes.
Description 2 (approx. 50 words)
This electric refuse vehicle combines long driving range and hydraulic compaction systems to lower landfill trips and reduce operating costs. The pure electric compressor truck maximizes payload capacity and supports eco‑friendly waste collection across residential, commercial, and municipal routes, helping cities achieve emission reduction and urban sanitation goals.
pure electric compressor truck
electric refuse collection vehicle
zero emission waste management truck
sustainable urban waste solution
lithium‑ion battery garbage truck
electric compactor refuse truck
smart refuse truck technology
energy‑efficient waste collection vehicle
green city fleet solution
high capacity electric garbage truck
The Jiefang CL5182ZYSBEV Pure Electric Compressor Truck exemplifies how modern technology is reshaping urban waste collection. By integrating zero emission electric propulsion, advanced compaction, and intelligent fleet management, this class of vehicle supports sustainable cities, reduces operational costs, and enhances overall collection efficiency. As sustainability becomes a strategic priority for public and private sectors alike, electric refuse vehicles like this model will continue to play an increasingly central role in modern waste management infrastructure.
