inotruk HOWO12m³b Vacuum Sewage Suction Tank Truck
Driving cab | Color white | |||
Classic Dream Chaser right-hand cab; 2080 half row, air conditioning, power steering, 120L iron fuel tank, exhaust brake | ||||
Vehicle Main Dimensions | Overall dimension（L*W*H)mm | 6800*2350*3000 | ||
Wheelbase（mm） | 3800 | |||
Weight（kg) | Total mass（kg) | 14060 | ||
Approximate Tare Weight(kg) | 6200 | |||
Top vehicle speed (Km/h) | 90 | |||
Engine | Brand | HOWO | ||
Model | YN4102QBZL | |||
Horsepower(HP) | 116HP | |||
Emission standard | Euro 二 | |||
Gearbox | WLY6TS55C | |||
Fuel Type | Diesel engine | |||
Steering | Left hand drive power steering | |||
Chassis Model | ZZ1107D3815C1R | |||
Date of production | 2025 | |||
1. The volume of the sewage tank is about 12 cubic meters. The sewage tank is made of high-quality steel plates of Wuhan Iron and Steel Corporation, with a wall thickness of 6 thick, and a wave-proof plate is reasonably designed in the middle of the tank body.
2. Install Shandong Zibo SK-12 water circulation pump and double stainless steel filter screens
3. Install stainless steel filter screens on the vacuum tube
4. Install a 100-diameter seismic pressure gauge at the position of the sewage suction four-way valve, which can resist the vibration of the working environment and reduce the pulsation of the medium pressure
5. A 100-diameter sewage suction port and a 150-diameter sewage discharge port
6. The tank body has a lifting and unloading function, and the rear door at the rear can be hydraulically opened with a locking device
7. The large platform is fully paved on both sides of the tank body, which is convenient for placing the sewage suction pipe and other working tools. The tank top is equipped with a guardrail, which is safe and practical
Vehicle accessories:
A manual for a truck.
A set of vehicle tools.
An 8-meter sewage suction pipe

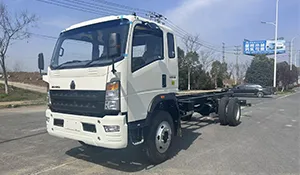

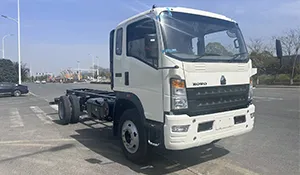

Car chassis photos
CommercialQuotes | Quantity: 1 vehicle |
Single unitquotation | FOB Shanghai Port, China: USD 21,000 |
Payment Methods | 30% T/T prepaid, 70% paid before shipment |
Production time | Manufacturing completed within20daysafterreceivingdeposit |
Country of origin | Hubei, China |
Vehicle documents | Packing list/invoice, certificate of origin, vehicle certificate of conformity, vehicle instruction manual. |
After-sales service | The seller ensures that the product design and raw materials are free of defects. The warranty period of the vehicle is 12 months or 30,000 kilometers (whichever comes first) |
Validity | The offer is valid until December 30, 2025. |
Company Name Registered Address | ChengLi Special Automobile Co.,Ltd South Suburb ChengLi Automobile Industry park, Suizhou City, Hubei Province, China |

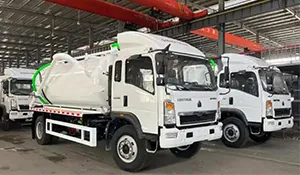

HOWO 10–12 Cubic Meter Vacuum Suction Truck: Complete Industry Guide
The HOWO 10–12 Cubic Meter Vacuum Suction Truck is a highly efficient vehicle widely used in municipal, industrial, and environmental management operations. Designed for sewage collection, sludge removal, and wastewater transportation, it combines durability, advanced vacuum technology, and high-capacity design to optimize workflow in demanding environments. This comprehensive guide explores every aspect of the truck, including its definition, working principle, advantages, technical specifications, applications, safety features, maintenance, and operational best practices.
Municipal authorities, industrial facilities, and waste management companies rely on vacuum suction trucks to maintain sanitation, remove liquid waste, and prevent environmental contamination. Among these vehicles, the HOWO 10–12 Cubic Meter Vacuum Suction Truck stands out due to its balance of high-capacity storage, strong engine performance, and operator-friendly design.
Modern vacuum suction trucks utilize a high-power diesel engine, hydraulic lifting system, and specialized vacuum pumps to handle large volumes of sewage, sludge, and wastewater. With a tank capacity of 10–12 cubic meters, these trucks are ideal for medium to large urban projects, minimizing trips, saving fuel, and improving overall operational efficiency.
A vacuum suction truck is a specialized vehicle designed for the safe and efficient collection, transport, and disposal of liquid and semi-solid waste. Using a vacuum pump system, the truck draws sewage, sludge, or industrial effluents into a sealed tank. After filling, the waste can be transported to treatment or disposal facilities.
Vacuum suction trucks are characterized by a vacuum suction system, hydraulic lifting tanks for easy unloading, durable chassis, and safety features such as pressure valves and gauges. They are commonly used in municipal sewage cleaning, industrial waste management, oil spill recovery, and environmental protection projects. The 10–12 cubic meter capacity provides a versatile option, offering a balance between operational efficiency and vehicle maneuverability.
The operational principle of a HOWO vacuum suction truck is simple yet highly effective. A diesel engine powers a vacuum pump to create negative pressure inside the tank. Wastewater or sludge is drawn through suction hoses into the tank, which is reinforced with wave-proof plates to maintain structural integrity. Stainless steel filter screens prevent large debris from entering the pump system.
Once the tank is full, the truck transports the waste to a treatment or disposal facility. The hydraulic lifting system tilts the tank, and the rear door opens to discharge the waste efficiently. This combination of vacuum suction and hydraulic unloading allows large volumes of waste to be handled safely, quickly, and with minimal environmental impact.
| Component | Description |
|---|---|
| Cabin | Classic Dream Chaser right-hand cab, air conditioning, power steering, 2080 half-row seating, 120L fuel tank, exhaust brake |
| Chassis | Heavy-duty HOWO chassis model ZZ1107D3815C1R |
| Engine | YN4102QBZL diesel engine, 116HP, Euro II emission standard |
| Vacuum Pump | High-capacity vacuum pump with stainless steel filter screens |
| Tank | 10–12 cubic meter capacity, high-strength steel, wave-proof plates |
| Ports | 100mm sewage suction port, 150mm sewage discharge port |
| Hydraulics | Lifting tank system with rear door and locking device |
| Safety Features | Pressure gauge, guardrails on tank top, secure platforms for operators |
| Tires | 8.25R16 18PR heavy-duty tires for all operations |
Additional features include an 8-meter suction hose for extended reach, an easy-to-use control panel for vacuum pump operation, and corrosion-resistant stainless steel construction.
The large 10–12 cubic meter tank capacity allows for efficient collection of sewage and sludge, reducing operational trips and cutting fuel costs. These trucks can handle both liquid and semi-solid waste, making them suitable for a wide range of municipal and industrial projects. The high-strength steel tank and reinforced chassis provide durability for long-term heavy-duty use.
Safety is prioritized with pressure gauges, guardrails, and secure working platforms. Maintenance is simplified through standardized parts, modular design, and accessible pump systems, reducing downtime and increasing operational efficiency. Cost-effectiveness is achieved through reduced trips, optimized fuel use, and longer service life compared to smaller trucks when managing large volumes of waste.
| Specification | Value |
|---|---|
| Overall Dimension (LWH) mm | 6800 × 2350 × 3000 |
| Wheelbase (mm) | 3800 |
| Total Mass (kg) | 14060 |
| Tare Weight (kg) | 6200 |
| Top Speed (km/h) | 90 |
| Engine Model | YN4102QBZL |
| Horsepower (HP) | 116 |
| Emission Standard | Euro II |
| Gearbox | WLY6TS55C |
| Tire Size | 8.25R16 18PR |
| Fuel Type | Diesel |
| Steering | Left-hand drive, power steering |
| Chassis Model | ZZ1107D3815C1R |
| Tank Capacity | 10–12 m³ |
| Tank Material | High-strength steel, 6mm thick |
| Ports | 100mm suction / 150mm discharge |
| Hydraulic System | Tank lifting and rear door operation |
Vacuum suction trucks are widely utilized in municipal sanitation, industrial wastewater management, and environmental cleanup. In urban environments, they remove sewage and sludge from underground pipelines, pumping stations, and septic systems. In industrial facilities, they handle process water, wastewater, and semi-solid byproducts.
Other applications include environmental remediation, oil spill recovery, and construction site drainage. The hydraulic lifting tank allows for quick unloading of collected materials, increasing operational efficiency. Operators benefit from the truck’s guardrails, working platforms, and stainless steel filters that improve safety and reduce maintenance frequency.
Safety is critical in vacuum suction truck operations. Features include high-visibility guardrails, secure platforms, pressure gauges, and robust hydraulic systems. Compliance with emission standards, such as Euro II diesel engines, ensures environmental regulations are met. Operators are trained to manage vacuum pressure, monitor tank levels, and safely handle high-volume waste collection. Proper personal protective equipment (PPE) and adherence to operational protocols reduce risks during suction and discharge activities.
Regular maintenance extends the service life of the truck and ensures safe operation. Vacuum pumps should be inspected for wear, hoses checked for leaks, and tank structural integrity monitored. Hydraulic systems require routine oil changes and component lubrication. Stainless steel filters should be cleaned regularly to prevent clogging. Tires and chassis components should be inspected for damage, especially when operating on rough terrain.
Proper operation includes monitoring suction pressure, avoiding overfilling the tank, and ensuring hydraulic systems are fully functional before lifting or discharging materials. Following a consistent maintenance schedule reduces downtime and keeps operations efficient.
When selecting a vacuum suction truck, capacity, engine power, chassis durability, and hydraulic systems are key factors. The 10–12 cubic meter tank provides flexibility for medium to large operations. Diesel engine performance, emission compliance, and maintenance accessibility are essential for long-term cost-effectiveness. Additional features, such as extended suction hoses, working platforms, and stainless steel filtration, enhance operational efficiency.
Choosing a truck that balances tank volume, maneuverability, and advanced vacuum technology ensures optimal performance in municipal, industrial, and environmental applications. Cost-effectiveness, safety features, and ease of maintenance should be prioritized in the decision-making process.
What is the main purpose of a HOWO vacuum suction truck?
It is designed to efficiently collect, transport, and discharge sewage, sludge, and wastewater in municipal, industrial, and environmental operations.
Why choose a 10–12 cubic meter tank?
This capacity balances high-volume collection with maneuverability, reducing trips and operational costs for medium to large projects.
What safety features are included?
Guardrails, secure working platforms, pressure gauges, and hydraulic locks ensure safe operations during suction and unloading.
How often should maintenance be performed?
Vacuum pumps, hydraulic systems, and filters should be inspected regularly, while tires and chassis components require periodic checks to maintain optimal performance.
Can the truck handle semi-solid waste?
Yes, the truck is designed for both liquid and semi-solid waste, making it suitable for a wide range of municipal and industrial applications.
The HOWO 10–12 Cubic Meter Vacuum Suction Truck is a versatile, high-performance vehicle essential for efficient sewage collection, sludge removal, and wastewater management. Its combination of large tank capacity, robust diesel engine, hydraulic lifting, and advanced vacuum technology makes it ideal for municipal and industrial operations. With proper maintenance, safety adherence, and operational best practices, these trucks deliver long-lasting performance, high efficiency, and cost-effectiveness in demanding environments.
This comprehensive guide provides all the information needed for industry professionals, operators, and decision-makers to understand, operate, and select the most suitable vacuum suction truck for their projects. The HOWO 10–12 Cubic Meter Vacuum Suction Truck remains a reliable choice for sustainable, efficient, and safe waste management solutions.
