Chassis Configuration
New generation Pro 2100 wide-body cab with air-suspension seat and 10.5-inch color display instrument panel. Automatic headlights. Factory 3800 mm wheelbase. Foton Cummins 172 hp engine. Fast 8-speed gearbox. Factory-installed power take-off (PTO). Heavy-duty rear axle with 4.33 ratio. Factory three-layer straight-through main frame, 2300 mm tire spacing. Reinforced 9/8+6 leaf springs. Air brake system. 7.50R16 tires. Multifunction steering wheel, cruise control, Bluetooth phone connectivity, factory air conditioning, power steering, central locking, electric windows, remote key, ABS, self-adjusting brake arms, adjustable headlights, 120L aluminum fuel tank, aluminum air reservoir, maintenance-free dual batteries with power switch.
Upper Structure Configuration
1.8-ton upper structure with electrophoretic coating.

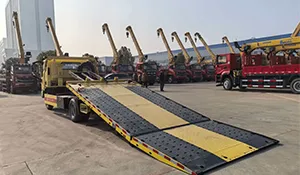

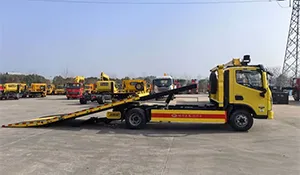

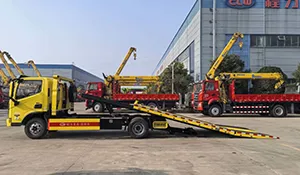

Integrated tail hydraulic tilting plate with through-shaft hinge connection, dual-side linkage operation, gantry frame separation.

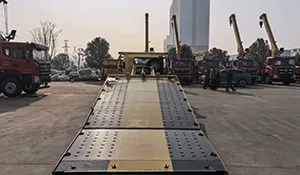

5 mm checkered steel plate, recessed flat plate, total length 5.8 meters (main plate 4.15 meters including hinge, tail plate 1.65 meters), fully perforated runway.
14 mm solid frame, recessed frame with bottom perforation.
10 mm thick manganese steel slide rails, double sub-beams, grid pattern, extended and reinforced triangular supports.
Hydraulic cylinders: 120 mm main cylinder, 110 mm lifting cylinder, 95 mm tilting cylinder, rear support arm 110 mm lifting cylinder, 110 mm telescopic cylinder.
4-ton hydraulic winch with 21-meter steel wire rope, recessed winch design.
6-ton dual-section rear support arm, attached to main beam.
Standard accessories: 4 tie-down straps, 1 pair of wheel chocks, 1 pair of tire holders, 1 pair of figure-eight forks.
Wrecker trucks are specialized vehicles designed for towing, recovery, and transportation of disabled or stranded vehicles. They are essential in roadside emergency services, municipal operations, industrial fleet recovery, and commercial vehicle towing.
Modern wrecker trucks integrate hydraulic lifting systems, reinforced chassis, dual-section rear support arms, and high-capacity winches, delivering efficient, safe, and reliable operations under demanding conditions.
SEO Keywords: Foton Aoling Wrecker Truck, heavy-duty tow truck, hydraulic recovery vehicle, emergency roadside assistance, industrial towing, commercial fleet wrecker.

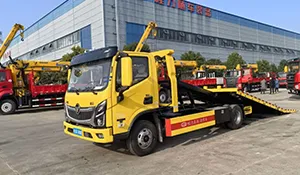

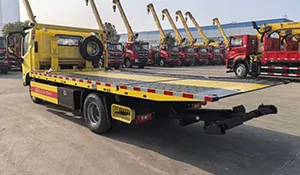

The Foton Aoling Wrecker Truck is engineered for medium-to-heavy vehicle recovery, combining a reinforced chassis, high-performance engine, robust upper structure, and advanced hydraulic system.
Key Features:
Heavy-duty chassis designed for industrial towing operations
Powerful diesel engine for stable, reliable performance
Dual-section rear support arms for vehicle stabilization
Hydraulic lifting, tilting, and telescopic mechanisms
High-capacity hydraulic winch for medium-to-heavy vehicle recovery
The truck is ideal for commercial, municipal, and industrial operations, ensuring safe, precise, and efficient vehicle recovery.

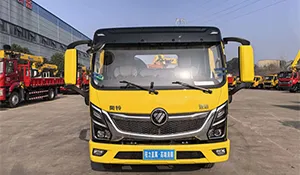

The Foton Aoling Wrecker Truck is built on a robust cab chassis, designed for strength, stability, and long-term durability.
Chassis Features:
Cab: Pro 2100 wide-body single-row or half-cab design
Wheelbase: 3800 mm factory-standard
Engine: Foton Cummins 172 hp diesel engine
Transmission: Fast 8-speed gearbox, with factory-installed power take-off (PTO)
Rear Axle: Heavy-duty, 4.33 ratio
Suspension: 9/8+6 reinforced leaf springs
Tires: 7.50R16 tubeless
Frame: Three-layer reinforced straight-through main beam
Cab Features: Air-suspension seat, multifunction steering, 10.5-inch color display, air conditioning, cruise control, ABS, remote key, power windows, central lock
The chassis is engineered for maximum stability and weight distribution, critical for long-distance towing and industrial recovery.
The upper structure is designed for durability, corrosion resistance, and operational efficiency.
Upper Structure Features:
Capacity: 1.8-ton upper structure with electrophoretic coating
Tail Hydraulic Tilting Plate: Integrated, through-shaft hinge, dual-side linkage, gantry separation
Main Plate: 5 mm checkered steel, recessed flat plate, total length 5.8 meters (main plate 4.15 m including hinge, tail plate 1.65 m), fully perforated runway
Frame: 14 mm solid steel, recessed frame, bottom perforation
Slide Rails: 10 mm manganese steel, double sub-beams, grid pattern, reinforced triangular supports
Hydraulic Cylinders: 120 mm main, 110 mm lifting, 95 mm tilting, rear support arm 110 mm lifting, 110 mm telescopic
Winch: 4-ton hydraulic winch with 21-meter steel wire rope, recessed design

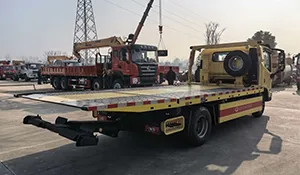

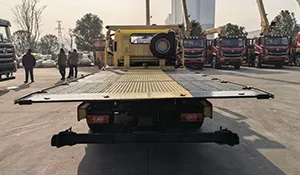

Rear Support Arm: 6-ton dual-section, attached to main beam
Standard Accessories: 4 tie-down straps, 1 pair wheel chocks, 1 pair tire holders, 1 pair figure-eight forks
This configuration ensures precise loading, towing, and transport, maintaining operator safety and vehicle integrity.
The hydraulic system provides controlled, precise, and efficient recovery operations:
Main Hydraulic System: Lifts and tilts tail plate and vehicles
Telescopic Rear Support Arms: Enhance stability during towing
High-Capacity Winch: 4-ton hydraulic winch with 21-meter steel wire rope
Control Mechanism: Manual levers or optional digital controls
This system ensures the Foton Aoling Wrecker Truck can safely handle medium-to-heavy vehicles.
High-performance engine: Reliable power under heavy load
Ergonomic cab design: Comfortable with excellent visibility
Reinforced chassis and frame: Handles industrial towing safely
Advanced hydraulic system: Smooth lifting, tilting, and winching
Durable upper structure: Corrosion-resistant, reinforced supports
Dual-section rear arms: Stabilize heavy vehicles
Versatile applications: Industrial, municipal, commercial towing
Safety features: ABS, traction control, air-suspension seats
Efficient operations: Low downtime, easy maintenance
| Feature | Specification |
|---|---|
| Cab Type | Pro 2100 wide-body single-row or half-cab |
| Wheelbase | 3800 mm |
| Engine | Foton Cummins 172 hp diesel |
| Transmission | Fast 8-speed gearbox, PTO included |
| Rear Axle | Heavy-duty, 4.33 ratio |
| Suspension | 9/8+6 reinforced leaf springs |
| Tires | 7.50R16 tubeless |
| Tow Platform Capacity | 1.8 tons, electrophoretic coating |
| Tail Hydraulic Tilting Plate | Integrated, dual-side linkage, gantry separation |
| Main Plate | 5 mm checkered steel, flat recessed plate, fully perforated runway |
| Frame | 14 mm solid steel, recessed, bottom perforation |
| Slide Rails | 10 mm manganese steel, double sub-beams, grid pattern |
| Hydraulic Cylinders | 120 mm main, 110 mm lifting, 95 mm tilting, rear 110 mm lifting |
| Winch | 4-ton hydraulic, 21-meter steel wire rope |
| Rear Support Arm | 6-ton dual-section |
| Standard Accessories | 4 tie-down straps, wheel chocks, tire holders, figure-eight forks |
Industrial Vehicle Recovery: Heavy machinery, trucks, construction vehicles
Commercial Fleet Maintenance: Recovery of vans, buses, light trucks
Municipal Services: Roadside recovery and urban towing
Emergency Response: Rapid deployment for accidents or breakdowns
Specialized Operations: Highway, factory, and industrial facility recovery
Hydraulic lifting and tilting systems for controlled vehicle loading
Winch pulling to recover immobilized vehicles
Dual-section rear support arms for stability
Reinforced slide rails and chassis support heavy loads
These mechanisms ensure safe, efficient, and precise recovery operations.
Factors to consider:
Maximum towing capacity
Hydraulic system and winch capabilities
Chassis and suspension strength
Operational terrain and environment
Maintenance requirements and lifecycle cost
Inspect hydraulic cylinders, hoses, and joints regularly
Lubricate winch cables and sliding rails
Check suspension and tires frequently
Test tilting plates and rear support arms
Service engine and gearbox per schedule
Maintain safety accessories and tie-down equipment
Diesel engine reduces fuel consumption
High-durability chassis minimizes repair costs
Efficient hydraulic system lowers energy use
Compact dimensions improve urban efficiency
Versatility enhances ROI across industrial, municipal, and commercial applications
Digital hydraulic controls for precise operation
Energy-efficient hydraulic and winch systems
High-strength, corrosion-resistant materials
Smart fleet management with GPS tracking and predictive maintenance
Reinforced, corrosion-resistant upper structure
Emergency hydraulic shut-off systems
Operator safety features: ABS, traction control, ergonomic cab
Compliance with municipal, industrial, and environmental regulations
Maximum towing capacity? 1.8 tons
Winch capacity? 4-ton hydraulic with 21-meter steel rope
Included accessories? Tie-down straps, wheel chocks, tire holders, figure-eight forks
Applications? Industrial, municipal, commercial recovery
The Foton Aoling Wrecker Truck is a durable, versatile, and high-performance solution for medium-to-heavy vehicle recovery. Its reinforced chassis, dual-section rear support arms, hydraulic lifting system, and robust winch deliver safe, precise, and efficient recovery across industrial, municipal, and commercial applications.
