Introduction

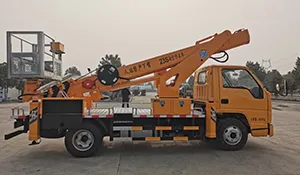

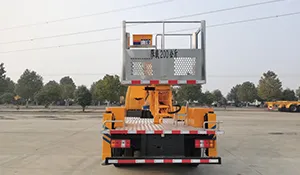

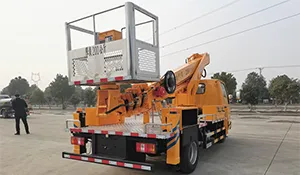

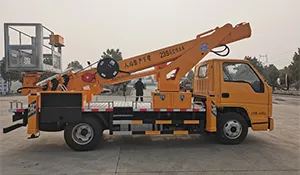

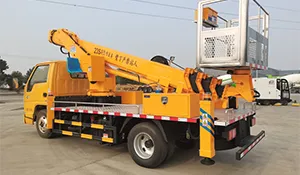

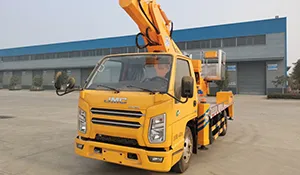

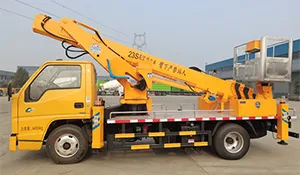

The Jiangling 23-meter square outriggers are specialized stabilization devices designed for aerial work trucks and boom vehicles. These outriggers ensure maximum operational stability, safety, and load-bearing efficiency during high-altitude operations.

With industrial-grade hydraulic systems and durable square-frame construction, these outriggers are ideal for construction, urban maintenance, electrical line work, industrial facilities, and emergency operations. By providing firm support at extended reaches, they minimize tipping hazards and improve operational precision.

SEO Keywords:

• Jiangling 23-meter square outriggers

• 23m aerial support outriggers

• Hydraulic outrigger system

• Industrial boom stabilizers

• Elevated work platform support

Definition and Overview

Square outriggers are stabilization systems used to extend the footprint of a truck or boom vehicle, providing enhanced balance and load distribution. The Jiangling 23-meter variant is engineered for large aerial platforms, telescopic booms, and heavy-duty industrial tasks.

Key benefits include:

• Increased stability during full boom extension

• Improved safety for personnel and equipment

• Enhanced precision during elevated operations

The hydraulic square design allows adjustable deployment, supporting 23-meter reach operations while maintaining a compact footprint for transport.

Core Features

Technical Specifications

Advantages

Safety

• Hydraulic controls and load sensors prevent tipping.

• Anti-slip pads secure the vehicle on uneven or paved surfaces.

• Emergency stop features provide rapid hazard response.

Efficiency

• Quick deployment and retraction reduce setup time.

• Compatible with rotating boom trucks without repositioning.

• Allows simultaneous operation of boom and support system.

Durability

• Industrial-grade steel frame withstands heavy loads.

• Hydraulic system designed for repeated high-capacity use.

• Anti-corrosion treatment ensures long-term outdoor operation.

Versatility

• Compatible with telescopic, articulated, and double-row boom trucks.

• Adjustable deployment footprint suits varied terrain.

• Ideal for construction, urban maintenance, industrial, and emergency operations.

Applications

Construction Sites

• Stabilizes trucks for façade inspection and repair.

• Supports elevated platform operations during building installation.

• Enhances safety for high-rise construction tasks.

Urban Maintenance

• Ensures safe access for streetlight, signage, and billboard maintenance.

• Provides stability for urban electrical and telecom line work.

Industrial Facilities

• Maintains elevated machinery, tanks, and piping safely.

• Supports heavy load operations during maintenance and inspection.

Emergency Services

• Provides rapid stabilization for rescue and firefighting operations.

• Essential for urban disaster inspection at elevated heights.

Safety Standards

• OSHA / ANSI Compliance: Industrial aerial lift and outrigger safety standards.

• Load Monitoring: Prevents overload and potential tipping.

• Fall Protection: Combined with boom guardrails and anti-slip platforms.

• Emergency Systems: Automatic hydraulic lock, load sensor alerts, and rapid shutdown.

• Environmental Compliance: Hydraulic fluids and materials meet industrial safety standards.

Best Practices for Operation

• Fully stabilize the truck chassis before extending outriggers.

• Deploy outriggers on level surfaces whenever possible.

• Monitor load limits for both boom and outriggers.

• Retract outriggers carefully when moving the vehicle.

• Perform daily inspections of hydraulic hoses, locks, and pads.

Maintenance Guidelines

• Daily Checks: Inspect hydraulic hoses, pads, locks, and frame integrity.

• Weekly Checks: Test deployment/retraction time, load sensor calibration.

• Monthly Maintenance: Lubricate moving joints, inspect anti-slip pads.

• Annual Servicing: Full hydraulic inspection, steel structural checks, and load capacity testing.

• Operator Training: Ensure personnel are trained in safe deployment and emergency procedures.

Frequently Asked Questions (FAQ)

Q: What is the maximum reach of these outriggers?
A: 23 meters, ideal for elevated boom and aerial work.

Q: What is the load-bearing capacity?
A: Typically 2,000–5,000 kg per outrigger depending on vehicle configuration.

Q: Are they compatible with all boom trucks?
A: Compatible with telescopic, articulated, and double-row boom vehicles.

Q: Can they operate on uneven terrain?
A: Yes, adjustable hydraulic deployment and anti-slip pads provide stability.

Q: How fast can they be deployed?
A: 30–60 seconds for full extension, depending on the system and boom type.

Operational Scenarios

Construction Example

Outriggers deployed on a high-rise façade project stabilize the boom truck for safe window installation. Hydraulic deployment allows precise adjustment, compensating for uneven terrain, while load sensors prevent tipping.

Urban Maintenance Example

For streetlight replacement, outriggers stabilize the truck, allowing boom rotation to reach multiple poles without repositioning. Anti-slip pads provide added safety on asphalt or concrete.

Industrial Facility Example

While inspecting a 20-meter elevated tank, outriggers ensure the truck remains stable under heavy load. Hydraulic precision allows smooth adjustments, ensuring safe personnel operation.

Emergency Response Example

During firefighting operations, 23-meter square outriggers stabilize elevated trucks, providing safe access to high-rise buildings. Remote control deployment allows operation from a safe distance in hazardous zones.

Summary

The Jiangling 23-Meter Square Outriggers are essential for safe, efficient, and precise elevated operations. Their hydraulic square-frame design, adjustable deployment, anti-slip pads, and load monitoring ensure optimal stability for construction, urban maintenance, industrial, and emergency applications.
