Introduction: Wrecker Trucks and Their Role

Wrecker trucks are specialized heavy-duty vehicles designed for towing, recovering, and transporting disabled or stranded vehicles. These trucks are essential in emergency roadside assistance, industrial fleet operations, municipal services, and commercial transport.

Modern wrecker trucks integrate hydraulic lifting systems, reinforced chassis, high-capacity winches, and dual-section rear support arms, ensuring efficiency, safety, and reliability in diverse operational conditions.

SEO Keywords: JAC Junling Wrecker Truck, heavy-duty tow truck, hydraulic recovery vehicle, industrial towing, emergency roadside recovery.

Overview of JAC Junling Wrecker Truck

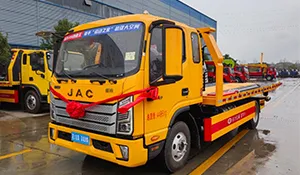

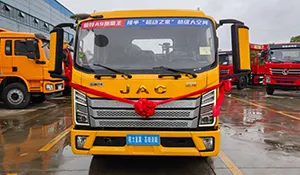

The JAC Junling Wrecker Truck is engineered for heavy-duty towing, vehicle recovery, and transportation operations. It combines a robust chassis, high-performance engine, advanced hydraulic systems, and reinforced upper structures to safely and efficiently recover disabled vehicles.

Key Features:

• Heavy-duty chassis capable of supporting large loads

• Powerful diesel engine for stable performance under load

• Dual-section rear support arms for enhanced stability

• Hydraulic tilting plates and lifting systems for precise operations

• High-capacity hydraulic winch for towing and recovery

This configuration ensures rapid and safe recovery for industrial, municipal, and commercial applications.

Chassis and Engine Configuration

The JAC Junling Wrecker Truck is built on a durable cab chassis, designed for stability, load-bearing capacity, and driver comfort.

Chassis Features:

• Cab: Half-cab/single-row wide-body design

• Wheelbase: 3800 mm

• Engine: Yuchai 160 hp diesel engine

• Gearbox: Fast 8-speed manual transmission, with factory-installed PTO

• Rear Axle: 6.5-ton capacity

• Tires: 7.50R16 steel cord

• Frame: Three-layer straight-through main beams, 850 mm opening

• Suspension: 11/9+7 reinforced leaf springs

• Storage: 38 compartments / 160 L total

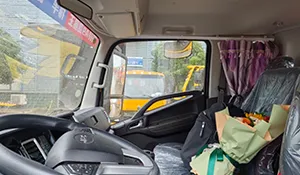

• Cab Space: 9 m³ passenger compartment

The chassis is engineered for excellent weight distribution, operational stability, and operator comfort, critical for long-distance and heavy-duty recovery tasks.

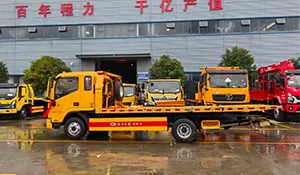

Upper Structure and Recovery System

The upper structure is designed for strength, durability, and operational efficiency.

Upper Structure Features:

• Capacity: 7 tons with corrosion-resistant electrophoretic coating

• Tail Hydraulic Tilting Plate: Integrated design, through-shaft hinge, dual-side linkage, gantry frame separation

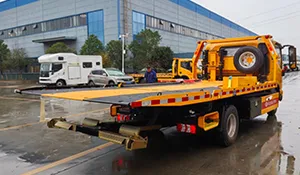

• Main Plate: 5 mm checkered steel, flat plate depression, total length 5.8 m (main plate 4.15 m including hinge, tail plate 1.65 m), fully perforated runway

• Frame: 14 mm solid steel, depressed frame, bottom perforation

• Slide Rails: 10 mm manganese steel, double sub-beams, grid pattern, reinforced triangular supports

• Hydraulic Cylinders: 110 mm main cylinder, 110 mm lifting cylinder, 95 mm tilting cylinder, rear support arm 110 mm lifting cylinder, 110 mm telescopic cylinder

• Winch: 4-ton hydraulic winch, 21-meter steel wire rope, recessed design

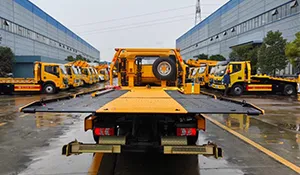

• Rear Support Arm: 6-ton, two-section, attached to main beam

• Standard Accessories: 4 tie-down straps

This configuration allows precise lifting, towing, and transport while maintaining operator safety and structural durability.

Hydraulic and Winch System Features

The hydraulic system ensures controlled, precise, and safe operations:

• Precision hydraulic cylinders for main lifting, tilting, and telescopic adjustments

• Dual-section rear support arms for vehicle stabilization

• 4-ton hydraulic winch with 21-meter steel wire rope for recovery

• Integrated manual or digital control panel

These systems allow the recovery of a wide range of vehicles while maintaining efficiency and safety.

Key Advantages of JAC Junling Wrecker Truck

• High-performance engine: Reliable power for towing medium-to-heavy vehicles

• Ergonomic cab design: Comfort and visibility for long operations

• Reinforced chassis and frame: Handles heavy-duty tasks safely

• Advanced hydraulic system: Smooth lifting, tilting, and towing

• Durable upper structure: Corrosion-resistant coating, reinforced slide rails

• Winch capacity: 4-ton hydraulic system for effective recovery

• Versatility: Industrial, municipal, and commercial recovery operations

• Safety features: ABS, ASR, air-suspension seats, multifunction controls

Technical Specifications Table

Industry Applications

• Municipal Services: Recovery of public service and utility vehicles

• Industrial Towing: Construction machinery, trucks, and equipment

• Emergency Roadside Recovery: Rapid response to accidents or breakdowns

• Commercial Fleet Maintenance: Efficient fleet vehicle towing and transport

• Specialized Applications: Highway, industrial plant, and emergency towing

Operational Principles and Mechanisms

The JAC Junling Wrecker Truck uses:

• Hydraulic lifting and tilting for precise vehicle loading

• Winch pulling for stranded or blocked vehicles

• Dual-section rear support arms for stability

• Reinforced frame and slide rails for heavy-duty durability

This ensures safe, efficient, and controlled vehicle recovery across all applications.

Choosing the Right Wrecker Truck

Key considerations:

• Vehicle type and weight

• Winch and hydraulic capacity

• Chassis and suspension strength

• Operational terrain and environment

• Maintenance and lifecycle cost

Selecting the right truck ensures maximum operational efficiency, safety, and ROI.

Maintenance Best Practices

• Inspect hydraulic cylinders, hoses, and joints regularly

• Clean and lubricate winch and cables

• Check suspension and tires frequently

• Test tilting plates and rear support arms

• Perform regular engine and gearbox servicing

• Maintain all safety equipment and accessories

Operational Costs, Fuel Efficiency, and ROI

• Optimized diesel engine reduces fuel consumption

• Efficient hydraulic systems minimize energy loss

• High-capacity chassis reduces repeated trips

• Preventive maintenance lowers downtime

• Durable upper structure increases long-term ROI

Innovations and Industry Trends

• Digital hydraulic controls: Remote operation, precision lifting

• Hybrid/electric winches: Energy-saving and low-emission

• Advanced materials: Corrosion-resistant, high-strength steel

• Smart fleet management: GPS tracking, predictive maintenance, route optimization

Safety Standards and Regulatory Compliance

• Reinforced, leak-proof upper structure

• Emergency hydraulic shut-offs

• Compliance with municipal, industrial, and environmental regulations

• Operator safety features: anti-overload, ergonomic controls

Frequently Asked Questions

• What vehicles can it tow? Medium-to-heavy trucks, buses, and machinery

• Winch capacity? 4-ton hydraulic with 21-meter steel rope

• Included accessories? 4 tie-down straps

• Applications? Industrial, municipal, and commercial recovery

Conclusion

The JAC Junling Wrecker Truck is a robust, reliable solution for heavy-duty vehicle recovery, industrial towing, and emergency roadside operations. Its reinforced chassis, hydraulic lifting system, dual-section rear support arms, and 4-ton winch provide safe, efficient, and long-lasting performance across municipal, industrial, and commercial environments.
