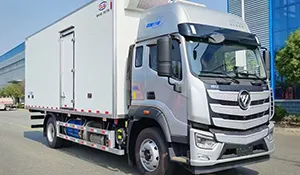

Foton Auman Planetary 6.8m refrigerated truck
BJ5181XLCY6AKL-01
Overall Dimensions: 9190*2600*3989(mm)
Box Dimensions: 6800*2420*2500(mm)
Power/Horsepower: 221KW/300hp 6442ml Displacement
Yuchai 300hp Engine (YCS06300-61)

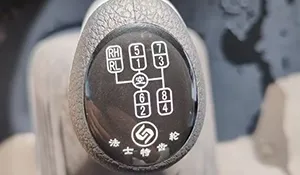

High-roof double-sleeper flat-floor cab, multi-function steering wheel, 8-speed gearbox, electrically heated integrated rearview mirrors, driver's air-suspension seat, integrated electric air conditioning, cruise control, reversing radar, automatic headlights, 7-inch color screen instrument panel, aluminum alloy fuel tank, 275/80R22.5 18PR tires, leaf springs: 10/10+8, rear axle/gear ratio: 8T 340 Hande Axle/3.909, reinforced body, LED headlights, standard rear protection, daytime running lights, maintenance-free batteries (2 x 135Ah), 80A motor; Wheelbase: 5150 mm
The transportation of perishable goods has evolved significantly with the advancement of High-end refrigerated trucks. Among these, the Foton Auman Planetary Refrigerated Truck represents a sophisticated solution designed for cold chain logistics. refrigerated trucks maintain precise temperature and humidity conditions, ensuring that sensitive products, such as food, pharmaceuticals, and chemicals, reach their destination without compromise.
The logistics industry increasingly relies on temperature-controlled transport to meet global demand for fresh and frozen goods. By integrating advanced refrigeration systems, insulated cargo compartments, and energy-efficient engines, these trucks provide a reliable solution for multi-stop urban deliveries, long-haul distribution, and international supply chains.
A refrigerated truck, or reefer truck, is a transport vehicle equipped with a refrigeration system capable of maintaining a specific temperature range. High-end models, such as the Foton Auman Planetary Refrigerated Truck, include advanced features to enhance performance, cargo safety, and energy efficiency.
Core features include:
Multi-zone temperature control systems for simultaneous transport of frozen, chilled, and ambient goods.
Superior insulation materials reducing heat transfer and energy consumption.
High-capacity refrigeration units compatible with eco-friendly refrigerants.
Optimized engine performance for energy efficiency.
Low-noise operation suitable for urban deliveries.
Ergonomic driver cabin with safety and comfort features.
These trucks maintain temperatures ranging from -25°C to +25°C, catering to diverse cold chain requirements. Modular cargo interiors allow flexible arrangements for pallets, crates, or bulk containers.
High-end refrigerated trucks serve multiple industries that require controlled temperature transportation:
Refrigerated trucks transport perishable products, including dairy, meat, seafood, fruits, vegetables, frozen meals, and beverages. Temperature consistency is critical for freshness and regulatory compliance.
Transportation of vaccines, medicines, and sensitive biological materials demands strict temperature adherence to preserve efficacy. Multi-compartment trucks allow simultaneous transport of products with different temperature requirements.
Flowers, plants, and delicate crops require regulated temperatures and humidity levels to maintain quality during transit.
Certain chemicals are temperature-sensitive. Refrigerated trucks prevent spoilage, chemical degradation, and safety hazards during transport.
Grocery stores, restaurants, and retail chains rely on refrigerated trucks to maintain product freshness and prevent spoilage across multiple distribution points.
The adoption of high-end refrigerated trucks offers numerous benefits over conventional transportation:
Advanced refrigeration systems provide consistent and precise temperature control, critical for perishable and temperature-sensitive products.
Modern engines and refrigeration units are designed to reduce fuel consumption. Some trucks use hybrid or electric refrigeration systems to minimize environmental impact.
Robust insulation, reinforced cargo bodies, and durable refrigeration units extend service life while reducing maintenance requirements.
Multi-compartment designs and adjustable shelving allow diverse goods to be transported simultaneously.
High-end trucks adhere to international food safety, pharmaceutical transport, and environmental regulations, ensuring operational compliance and reducing liability.
Features such as GPS tracking, telematics monitoring, lane-assist, and ergonomic cabins improve safety, operational efficiency, and driver comfort.
High-end refrigerated trucks consist of three main components:
Chassis and Cab
Heavy-duty frames, reinforced suspension, and advanced driver cabins with ergonomic controls.
Refrigeration Unit
Powered by diesel, electric, or hybrid systems. Includes compressors, condensers, evaporators, and temperature controllers.

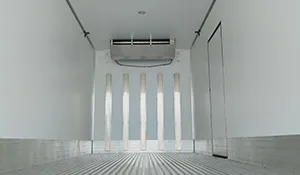

Insulated Cargo Body
Multi-layer insulation using materials like polyurethane foam, fiberglass, or composite panels.
Effective insulation reduces energy consumption and maintains precise temperature control. Common insulation materials include:
| Material | Thermal Conductivity | Advantages | Typical Use |
|---|---|---|---|
| Polyurethane Foam | 0.020–0.030 W/mK | Lightweight, high thermal resistance | Cargo panels |
| Fiberglass Panels | 0.035–0.040 W/mK | Moisture-resistant, durable | Sidewalls, doors |
| Composite Sandwich Panels | 0.025–0.030 W/mK | High strength, lightweight | Roofs, floors, walls |
Refrigeration systems vary by power source, temperature range, and application:
| System Type | Power Source | Temperature Range | Applications |
|---|---|---|---|
| Diesel-Powered | Diesel engine | -25°C to +25°C | Long-distance transport |
| Electric-Powered | Electric motor | -20°C to +25°C | Urban deliveries, low-emission zones |
| Hybrid Systems | Diesel + Electric | -25°C to +25°C | Flexible and energy-efficient operations |
| Cryogenic Systems | Liquid CO₂ or LN₂ | -80°C to -20°C | Ultra-low temperature pharmaceuticals |
High-end refrigerated trucks are evaluated based on multiple operational and technical parameters:
| Parameter | Typical Range | Importance |
|---|---|---|
| Cargo Volume | 8–40 m³ | Determines payload capacity |
| Maximum Payload | 3–12 tons | Critical for logistics planning |
| Temperature Accuracy | ±1°C | Ensures product integrity |
| Refrigerant Type | R134a, R404a, R1234yf | Environmental compliance |
| Engine Power | 120–280 HP | Balances speed and payload |
| Fuel Efficiency | 5–9 km/L | Reduces operational costs |
| Insulation Thickness | 50–120 mm | Improves thermal retention |
| Driving Range | 400–800 km | Long-haul suitability |
| Noise Level | ≤65 dB | Urban delivery compliance |
| Multi-Zone Compartments | 2–4 zones | Flexible cargo handling |
Proper maintenance ensures reliable operation and long service life:
Refrigeration Checks: Inspect compressors, evaporators, condensers, and refrigerant levels.
Temperature Calibration: Regular sensor and thermostat calibration.
Insulation Inspection: Detect thermal bridges, moisture intrusion, or damage.
Chassis Maintenance: Oil changes, brake inspections, and suspension checks.
Hygiene: Prevent contamination for food and pharmaceutical transport.
Preventive maintenance and telematics monitoring reduce downtime and operational risks.
Foton Auman Planetary Refrigerated Trucks are central to cold chain logistics. Effective integration requires:
Temperature Mapping: Multi-point cargo monitoring ensures uniform temperature.
Route Optimization: Reduces transit time and energy consumption.
Inventory Tracking: Integration with warehouse and ERP systems ensures traceability.
Regulatory Compliance: Documentation for health, safety, and transportation standards.
Cold chain management minimizes spoilage, preserves product quality, and supports customer satisfaction.
GPS tracking, remote temperature monitoring, and predictive maintenance enhance operational control and reduce risks.
Electric and hybrid refrigeration units reduce fuel consumption and carbon emissions, supporting environmental compliance.
Driver-assist systems, semi-autonomous driving, and lane-keeping technologies improve safety and efficiency, particularly in long-haul logistics.
Low global warming potential (GWP) refrigerants maintain cooling performance while minimizing environmental impact.
Lightweight, Modular Designs: Reduce weight and increase fuel efficiency.
Smart Temperature Control: AI-driven analytics optimize temperature management.
Renewable Energy Integration: Solar-powered auxiliary refrigeration units reduce diesel dependency.
Urban Logistics Solutions: Electric-powered trucks enable low-emission urban deliveries.
Multi-Temperature Transport: Simultaneous frozen, chilled, and ambient cargo transport enhances flexibility.
The Foton Auman Planetary Refrigerated Truck represents advanced, reliable, and versatile refrigerated transport. Its integration of multi-zone compartments, advanced insulation, and energy-efficient refrigeration systems ensures perishable goods are delivered safely and efficiently. By combining durability, precise temperature management, and modern telematics, these trucks meet the demands of global cold chain logistics.
Investing in high-end refrigerated trucks supports operational efficiency, reduces spoilage, enhances sustainability, and ensures compliance with global transport regulations. They are indispensable in food, pharmaceutical, chemical, and retail logistics operations.
| Feature | Specification | Notes |
|---|---|---|
| Truck Type | Planetary refrigerated truck | Multi-temperature zones |
| Engine Power | 150–280 HP | Diesel or hybrid |
| Transmission | Automatic or manual | Optional |
| Cargo Volume | 8–40 m³ | Varies by model |
| Maximum Payload | 3–12 tons | Depends on chassis |
| Refrigeration Type | Diesel, Electric, Hybrid, Cryogenic | Temperature-specific |
| Temperature Range | -25°C to +25°C | Adjustable |
| Insulation Material | Polyurethane, Fiberglass, Composite | Multi-layer |
| Insulation Thickness | 50–120 mm | Thermal retention |
| Fuel Efficiency | 5–9 km/L | Depends on load and terrain |
| Noise Level | ≤65 dB | Urban delivery compliant |
| Multi-Zone Capability | 2–4 compartments | Mixed cargo flexibility |
| Telematics | GPS + Remote Monitoring | Optional |
| Safety Features | ABS, ESP, Lane Assist | Driver safety |
| Maintenance Interval | 5,000–10,000 km | Recommended |
