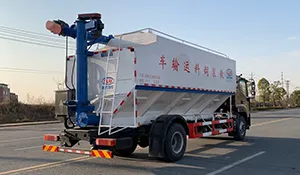

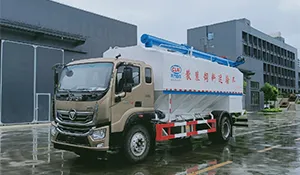

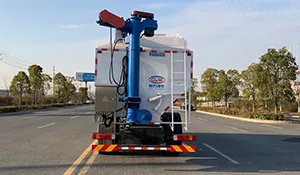

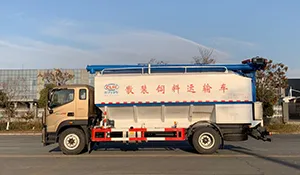

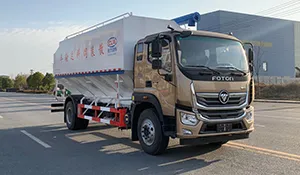

Foton Aoling Bulk feed transport vehicle (20–24 cubic meters)
Vehicle Model: CL5180ZSL6SS
The Foton Aoling features a modern cabin design, equipped with the F4.5NS6B220 Cummins 220-horsepower engine, Fast 8-speed gearbox, 5150mm wheelbase, 10.00 steel wire tires, air conditioning, power windows, central locking, ABS, and power steering.
Superstructure Electric Configuration:
The tank is constructed with high-quality steel plates and divided into three compartments, each independently controlling unloading order and speed. The truck has three augers powered by three 5.5 kW motors with 380V external power. The top auger is hydraulically liftable and can rotate ±180°. Optional onboard generator allows self-powering. Vehicle dimensions: 8900 × 2450 × 3750 mm, tank dimensions: 6000 × 2450 × 2350 mm.
Superstructure Hydraulic Configuration:
The tank is made of high-quality steel and divided into three compartments, each independently controlling unloading order and speed. Three augers are powered via a power take-off from the gearbox, driving a hydraulic pump and motor for full hydraulic unloading. The top auger is hydraulically liftable and can rotate ±180°. Vehicle dimensions: 8900 × 2450 × 3750 mm, tank dimensions: 6000 × 2450 × 2350 mm.
Bulk feed transport vehicle: Comprehensive Guide
Bulk feed transport vehicles are specialized trucks designed for the efficient transportation of feed, grain, and other powdered or granular materials used in livestock farming. These vehicles are essential for large-scale agricultural operations, ensuring precise, timely, and safe delivery of feed to farms, poultry houses, and livestock centers.
A bulk feed transport vehicle, also called a feed truck or feed delivery truck, is an industrial-grade vehicle equipped with a tank or hopper system for storing and delivering feed. These trucks are engineered for:
Multi-compartment storage
Automated or hydraulic unloading
On-farm and regional feed distribution
High-capacity and long-distance transportation
Modern bulk feed trucks feature tanks divided into multiple compartments. This design allows operators to transport different feed types simultaneously and control the sequence and speed of unloading. Multi-compartment vehicles improve efficiency and minimize feed cross-contamination.
There are two common unloading mechanisms:
Electric Augers: Powered by onboard electric motors, providing precise and controlled feed delivery. Often combined with external 380V connections or onboard generators.
Hydraulic Augers: Powered via the vehicle’s power take-off (PTO) and hydraulic system, enabling full hydraulic unloading with adjustable speed and direction.
Bulk feed transport vehicles vary from 10 cubic meters up to 45 cubic meters. High-capacity tanks reduce the number of trips required for feed delivery, increasing efficiency for large-scale farms.
Trucks are available in various configurations:
Short wheelbase (4x2) – ideal for small farms and mountainous terrain
Three-axle (6x4 or 6x2) – for medium-sized feed transport
Four-front eight-rear (8x4) – for maximum capacity and highway compliance
Most modern vehicles include:
Air-conditioned and high-roof cabins
Power steering and ABS
Electric windows and mirrors
Driver seat airbags and adjustable suspension
In-cab monitoring systems (recorders and GPS compatibility)
Reduced labor: automated unloading reduces manual effort
Precision feed delivery: independent compartment control
Enhanced feed quality: closed tanks protect feed from moisture and contamination
Cost-efficiency: high-capacity transport reduces fuel consumption per ton of feed
Bulk feed transport vehicles are used in:
Livestock farms (cattle, sheep, goats, pigs)
Poultry farms (broilers, layers)
Aquaculture feed distribution
Regional feed mills and delivery networks
| Feature | Electric Auger Configuration | Hydraulic Auger Configuration |
|---|---|---|
| Tank Material | High-quality steel plates | High-quality steel plates |
| Compartments | 3–4 compartments | 3–4 compartments |
| Auger Power | 3 × 5.5 kW electric motors | PTO-driven hydraulic motors |
| Top Auger | Hydraulically liftable, ±180° rotation | Hydraulically liftable, ±180° rotation |
| Vehicle Dimensions | 8900–12000 × 2450 × 3750–3995 mm | 8900–12000 × 2450 × 3750–3995 mm |
| Tank Volume | 20–45 cubic meters | 20–45 cubic meters |
| Engine Options | 220–360 HP Cummins or equivalent engines | 220–360 HP Cummins or equivalent engines |
| Transmission | 8–10 speed manual or automatic | 8–10 speed manual or automatic |
| Tires | 10.00–12R22.5 steel radial or vacuum tires | 10.00–12R22.5 steel radial or vacuum tires |
| Optional Features | Onboard generator, remote control, pneumatic covers | Onboard generator, remote control, pneumatic covers |
Designed for small farms and regions with restricted road conditions. Lightweight chassis, low weight, and high power engines optimize fuel efficiency and maintain legal load limits.
Advantages:
Maneuverable in narrow farm lanes
Lightweight with maximum payload capacity
Easy maintenance and cost-efficient operation
Medium-sized trucks with 30–36 cubic meter capacity. Suitable for regional feed distribution with moderate terrain access.
Advantages:
Higher payload than 4x2
Stable on highways and rural roads
Flexible unloading options (electric or hydraulic)
Large-scale feed transport with 40–45 cubic meters capacity. Common in intensive poultry or pig farms and feed mill deliveries.
Advantages:
Maximum payload for efficiency
Multi-axle design distributes weight evenly
Ideal for long-distance feed transport
Powered by onboard electric motors or external 380V supply
Independent compartment control
Adjustable top auger lift and rotation
Optional self-powered generator
Driven via PTO from the gearbox
Full hydraulic unloading system
Smooth, adjustable feed flow
Suitable for heavy-duty and continuous operation
Comparison Table
| Feature | Electric System | Hydraulic System |
|---|---|---|
| Power Source | 380V electric or generator | PTO-driven hydraulic pump |
| Maintenance | Moderate, easy motor replacement | Higher maintenance for pumps |
| Flow Control | Precise, compartment-based | Continuous, adjustable speed |
| Initial Cost | Moderate | Higher |
| Application | Small to medium farms | Medium to large farms |
Pre-check vehicle hydraulics, auger motors, and PTO connections
Regularly clean tank compartments to prevent feed contamination
Maintain tire pressure and suspension for optimal load distribution
Monitor engine oil, fuel, and cooling system before long trips
Train drivers for compartment-specific unloading operations
Efficiency: Reduces trips and fuel costs
Safety: Enclosed tanks prevent feed spillage
Precision: Multi-compartment control ensures feed distribution accuracy
Scalability: Adaptable to small, medium, or large farm operations
Durability: Reinforced chassis and steel tanks extend vehicle lifespan
| Vehicle Type | Tank Capacity | Engine HP | Transmission | Axle Configuration |
|---|---|---|---|---|
| Short wheelbase bulk feed truck | 20–24 m³ | 220–245 | 8-speed | 4x2 |
| Small Three-Axle Bulk Feed Truck | 30–36 m³ | 260 | 9-speed | 6x2 |
| Four-Front Eight-Rear Feed Truck | 40–45 m³ | 350–360 | 10-speed | 8x4 |
| Jiefang 42 m³ Bulk Feed Transport | 42 m³ | 360 | 10-speed | 8x4 |
| Foton Aoling 20–24 m³ Feed Truck | 20–24 m³ | 220 | 8-speed | 4x2 |
Inspect augers, hydraulic pumps, and electric motors regularly
Clean feed tanks after each trip to prevent moisture buildup
Grease moving parts monthly to reduce wear and tear
Check brakes, suspension, and tires weekly for safety compliance
Monitor PTO and generator performance for uninterrupted operations
Shift to electric-powered auger systems for energy efficiency
Development of automated feed tracking and GPS integration
Use of lightweight yet durable steel tanks for fuel economy
Multi-compartment customization for multi-feed distribution
Adoption of high-capacity vehicles for large-scale feed logistics
Bulk feed transport vehicles are an essential part of modern agricultural logistics. They combine high capacity, multi-compartment storage, automated unloading systems, and durable chassis to optimize feed distribution. By selecting the right vehicle type—short wheelbase, three-axle, or 4x8 high-capacity—farmers and feed distributors can maximize efficiency, minimize costs, and maintain feed quality.
With proper maintenance, careful operational practices, and awareness of industry innovations, these vehicles offer a long service life and high return on investment. For farms of any scale, bulk feed transport trucks are a cornerstone of efficient feed logistics and livestock management.
